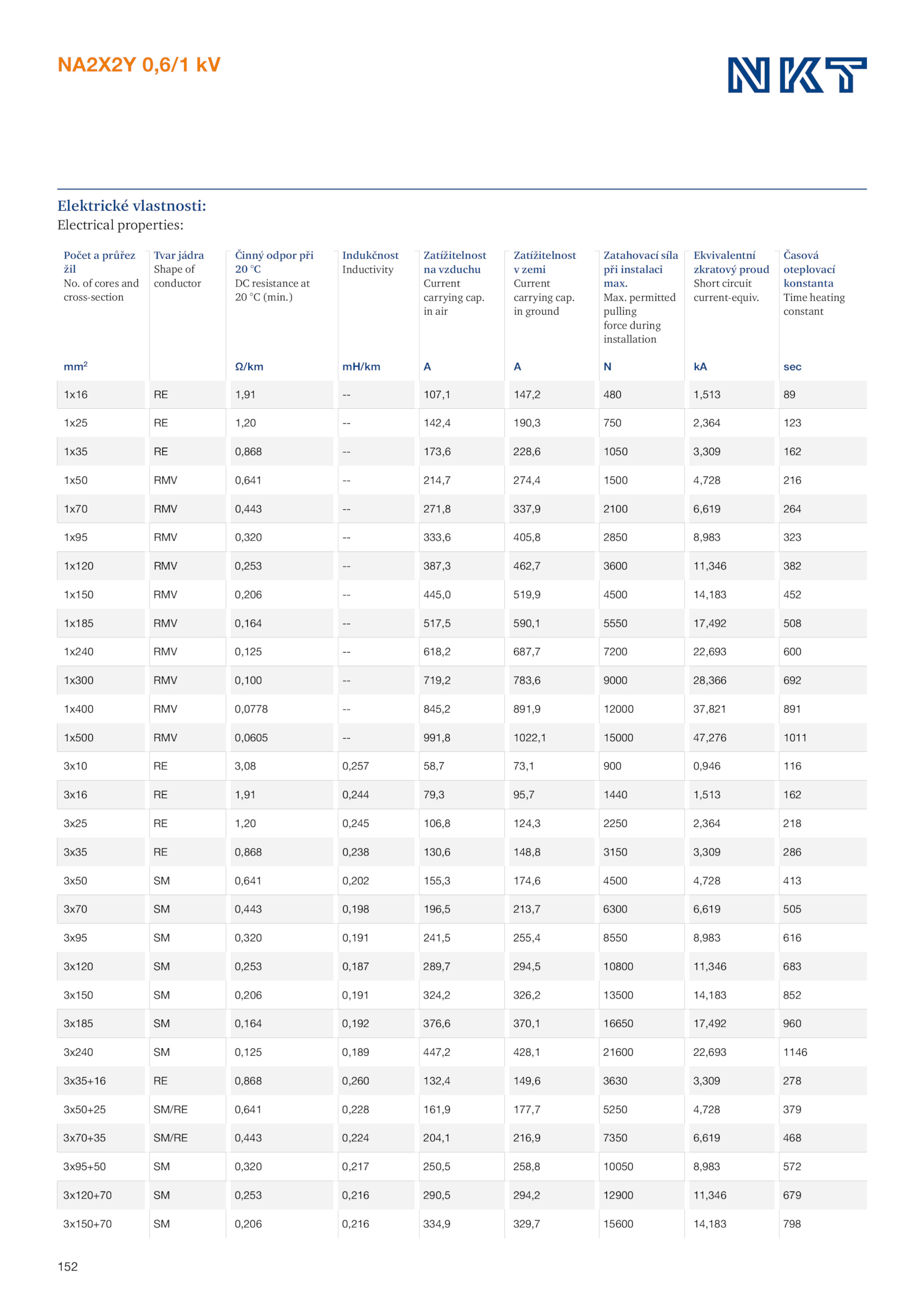

cores and cross-section Tvar jádra Shape of conductor Činný odpor při 20 °C DC resistance at 20 (min. Max. Časová oteplovací konstanta Time heating constant mm2 Ω/km mH/km sec 1x16 1,91 107,1 147,2 480 1,513 89 1x25 1,20 142,4 190,3 750 2,364 123 1x35 0,868 173,6 228,6 1050 3,309 162 1x50 RMV 0,641 214,7 274,4 1500 4,728 216 1x70 RMV 0,443 271,8 337,9 2100 6,619 264 1x95 RMV 0,320 333,6 405,8 2850 8,983 323 1x120 RMV 0,253 387,3 462,7 3600 11,346 382 1x150 RMV 0,206 445,0 519,9 4500 14,183 452 1x185 RMV 0,164 517,5 590,1 5550 17,492 508 1x240 RMV 0,125 618,2 687,7 7200 22,693 600 1x300 RMV 0,100 719,2 783,6 9000 28,366 692 1x400 RMV 0,0778 845,2 891,9 12000 37,821 891 1x500 RMV 0,0605 991,8 1022,1 15000 47,276 1011 3x10 3,08 0,257 58,7 73,1 900 0,946 116 3x16 1,91 0,244 79,3 95,7 1440 1,513 162 3x25 1,20 0,245 106,8 124,3 2250 2,364 218 3x35 0,868 0,238 130,6 148,8 3150 3,309 286 3x50 0,641 0,202 155,3 174,6 4500 4,728 413 3x70 0,443 0,198 196,5 213,7 6300 6,619 505 3x95 0,320 0,191 241,5 255,4 8550 8,983 616 3x120 0,253 0,187 289,7 294,5 10800 11,346 683 3x150 0,206 0,191 324,2 326,2 13500 14,183 852 3x185 0,164 0,192 376,6 370,1 16650 17,492 960 3x240 0,125 0,189 447,2 428,1 21600 22,693 1146 3x35+16 0,868 0,260 132,4 149,6 3630 3,309 278 3x50+25 SM/RE 0,641 0,228 161,9 177,7 5250 4,728 379 3x70+35 SM/RE 0,443 0,224 204,1 216,9 7350 6,619 468 3x95+50 0,320 0,217 250,5 258,8 10050 8,983 572 3x120+70 0,253 0,216 290,5 294,2 12900 11,346 679 3x150+70 0,206 0,216 334,9 329,7 15600 14,183 798 . in air Zatížitelnost v zemi Current carrying cap.) Indukčnost Inductivity Zatížitelnost na vzduchu Current carrying cap. in ground Zatahovací síla při instalaci max.152 NA2X2Y 0,6/1 kV Elektrické vlastnosti: Electrical properties: Počet průřez žil No. permitted pulling force during installation Ekvivalentní zkratový proud Short circuit current-equiv
