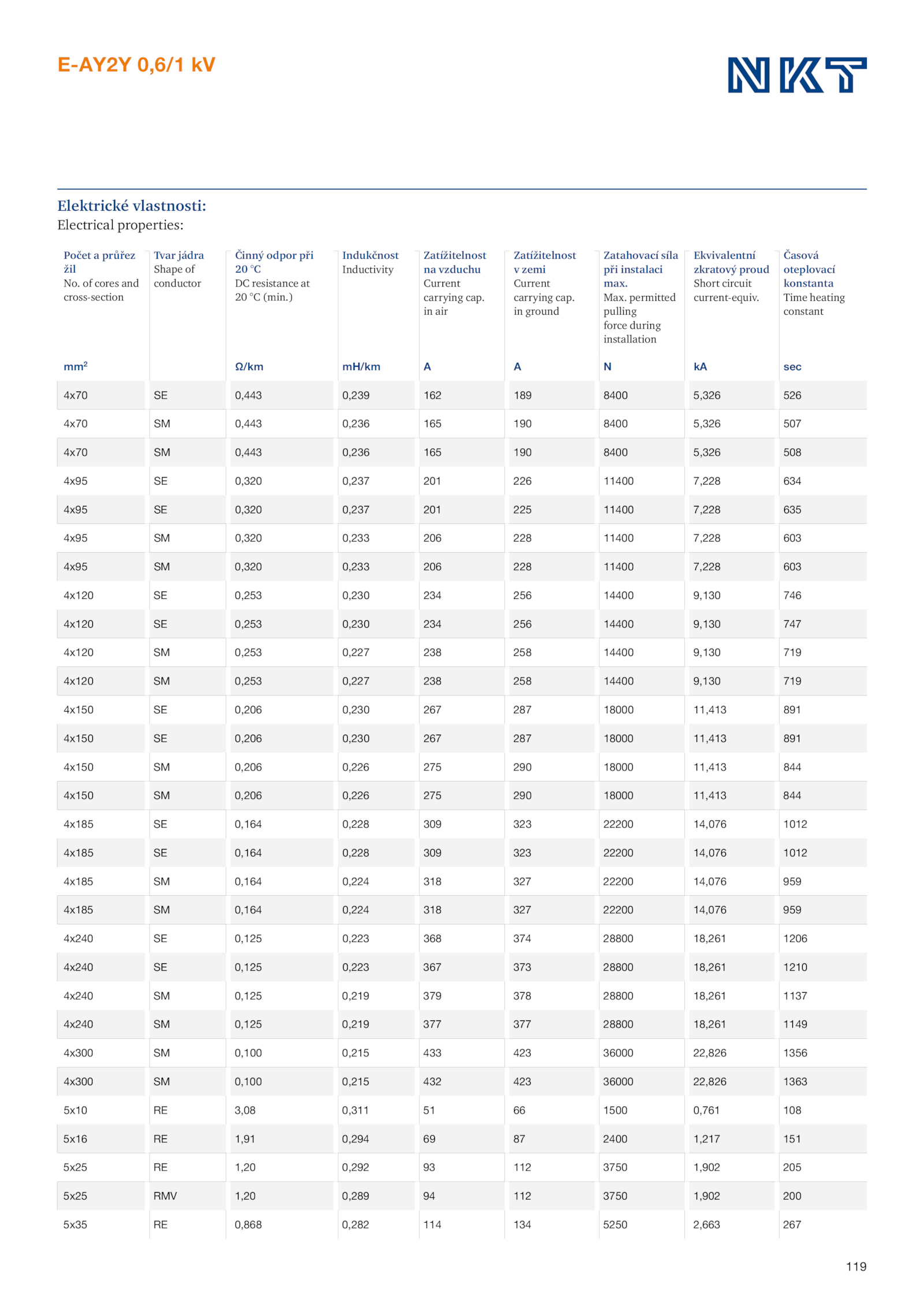

cores and cross-section Tvar jádra Shape of conductor Činný odpor při 20 °C DC resistance at 20 (min.119 E-AY2Y 0,6/1 kV Elektrické vlastnosti: Electrical properties: Počet průřez žil No. Max. in ground Zatahovací síla při instalaci max. permitted pulling force during installation Ekvivalentní zkratový proud Short circuit current-equiv. in air Zatížitelnost v zemi Current carrying cap.) Indukčnost Inductivity Zatížitelnost na vzduchu Current carrying cap. Časová oteplovací konstanta Time heating constant mm2 Ω/km mH/km sec 4x70 0,443 0,239 162 189 8400 5,326 526 4x70 0,443 0,236 165 190 8400 5,326 507 4x70 0,443 0,236 165 190 8400 5,326 508 4x95 0,320 0,237 201 226 11400 7,228 634 4x95 0,320 0,237 201 225 11400 7,228 635 4x95 0,320 0,233 206 228 11400 7,228 603 4x95 0,320 0,233 206 228 11400 7,228 603 4x120 0,253 0,230 234 256 14400 9,130 746 4x120 0,253 0,230 234 256 14400 9,130 747 4x120 0,253 0,227 238 258 14400 9,130 719 4x120 0,253 0,227 238 258 14400 9,130 719 4x150 0,206 0,230 267 287 18000 11,413 891 4x150 0,206 0,230 267 287 18000 11,413 891 4x150 0,206 0,226 275 290 18000 11,413 844 4x150 0,206 0,226 275 290 18000 11,413 844 4x185 0,164 0,228 309 323 22200 14,076 1012 4x185 0,164 0,228 309 323 22200 14,076 1012 4x185 0,164 0,224 318 327 22200 14,076 959 4x185 0,164 0,224 318 327 22200 14,076 959 4x240 0,125 0,223 368 374 28800 18,261 1206 4x240 0,125 0,223 367 373 28800 18,261 1210 4x240 0,125 0,219 379 378 28800 18,261 1137 4x240 0,125 0,219 377 377 28800 18,261 1149 4x300 0,100 0,215 433 423 36000 22,826 1356 4x300 0,100 0,215 432 423 36000 22,826 1363 5x10 3,08 0,311 1500 0,761 108 5x16 1,91 0,294 2400 1,217 151 5x25 1,20 0,292 112 3750 1,902 205 5x25 RMV 1,20 0,289 112 3750 1,902 200 5x35 0,868 0,282 114 134 5250 2,663 267
