TIR optic with
free-form lens
The combination TIR optic (Total
Internal Reflection) and free-form lens
array directs the relatively wide light
beam the LED parallel.84
The Lighting Handbook

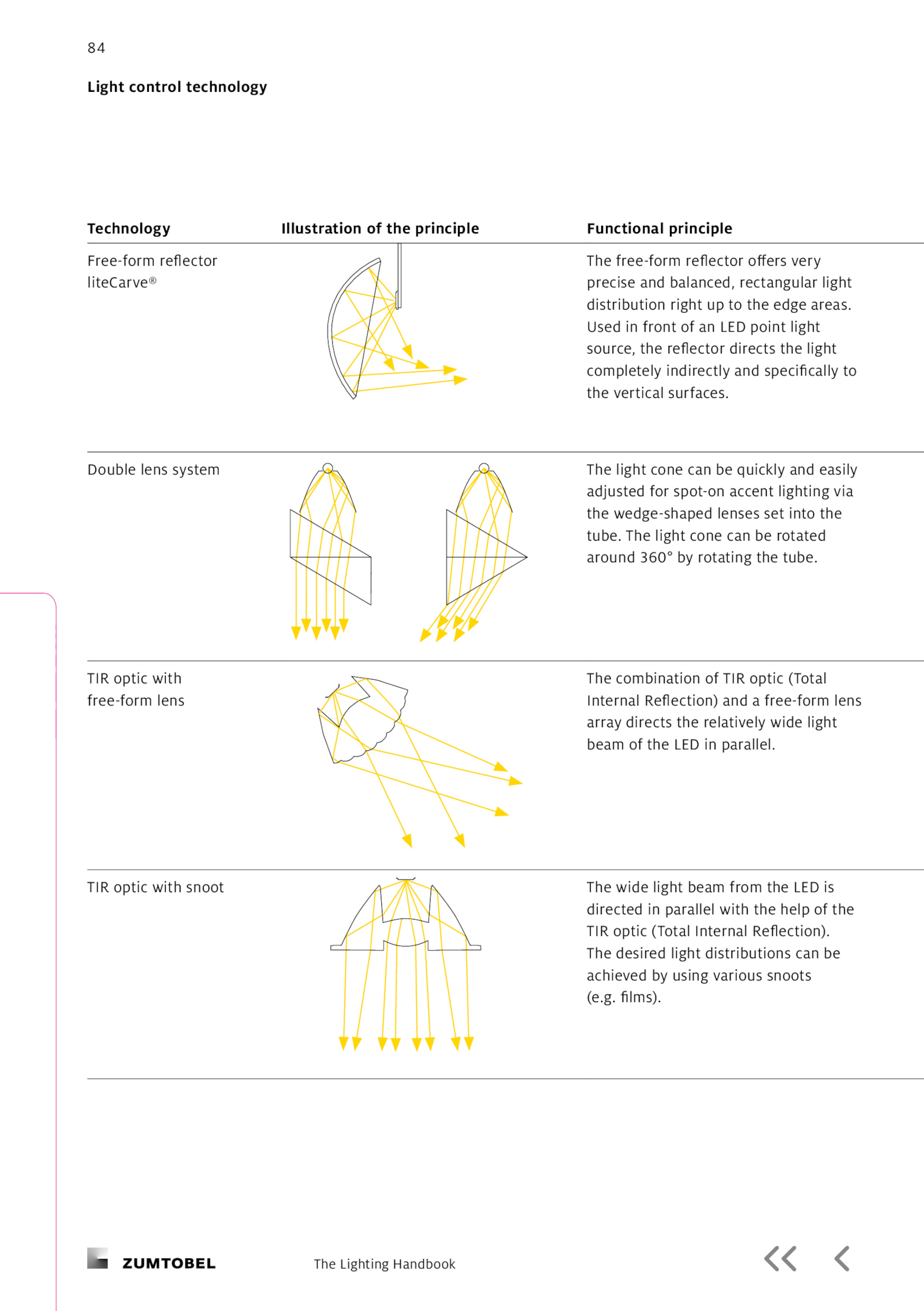

Technology Illustration the principle Functional principle
Free-form reflector
liteCarve®
The free-form reflector offers very
precise and balanced, rectangular light
distribution right the edge areas.
TIR optic with snoot The wide light beam from the LED is
directed parallel with the help the
TIR optic (Total Internal Reflection).
The desired light distributions can be
achieved using various snoots
(e.g.
Light control technology
. films). The light cone can rotated
around 360° rotating the tube.
Used front LED point light
source, the reflector directs the light
completely indirectly and specifically to
the vertical surfaces.
Double lens system The light cone can quickly and easily
adjusted for spot-on accent lighting via
the wedge-shaped lenses set into the
tube
