several fire
compartments are supplied from the ONLITE
central eBox SUB E60, the power cable must
be installed fireproof manner the
cabinet, and the
final circuits the fire
compartments supplied each case.153
The Lighting Handbook
EL1
EN1
PE
DA
DA
EL1
EN1
PE
EL1
EN1
PE

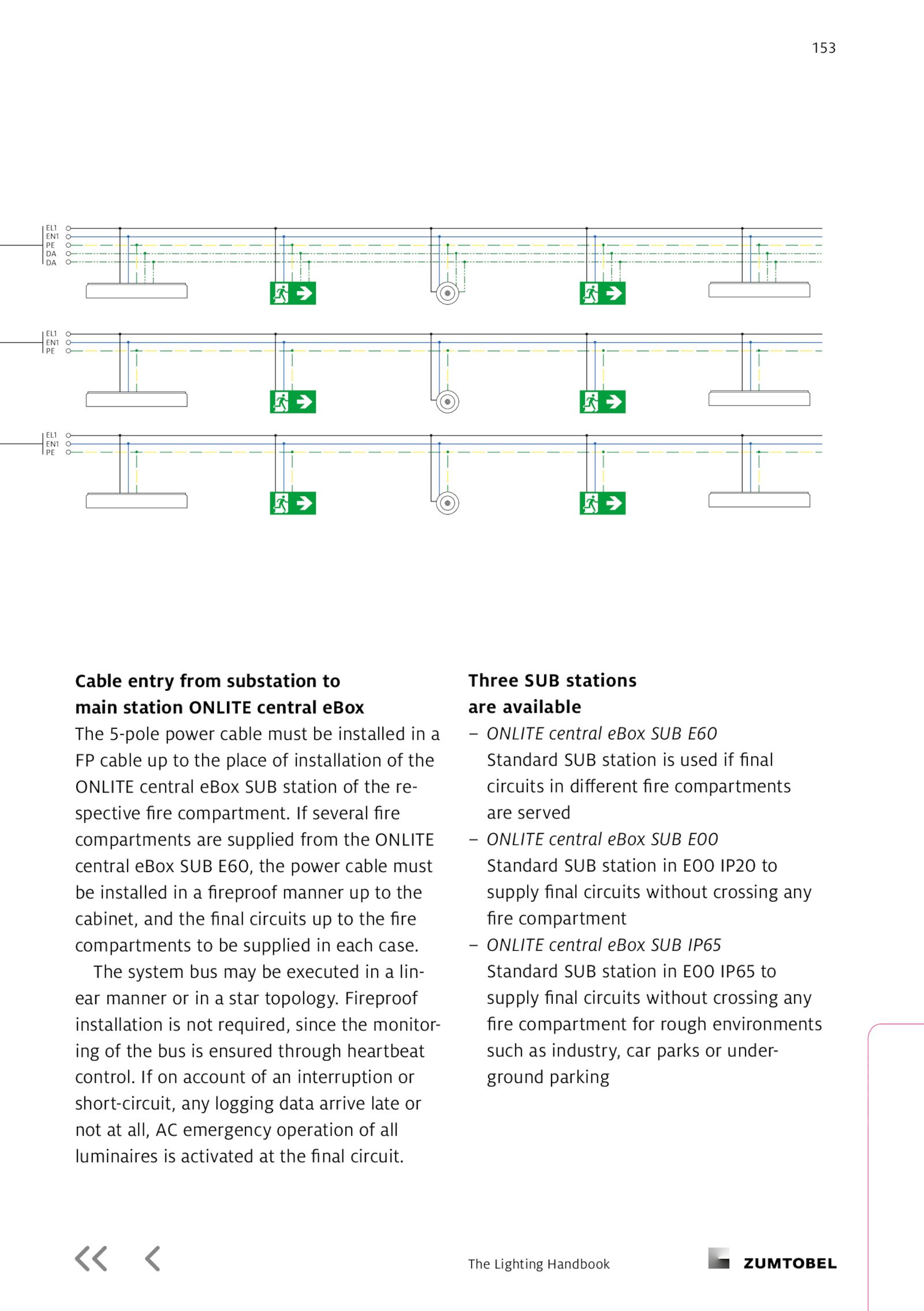

Cable entry from substation to
main station ONLITE central eBox
The 5-pole power cable must installed a
FP cable the place installation the
ONLITE central eBox SUB station the re-
spective fire compartment.
The system bus may executed lin-
ear manner star
topology. Fireproof
installation not required, since the monitor-
ing the bus ensured through heartbeat
control.
Three SUB stations
are available
–
ONLITE central eBox SUB E60
Standard SUB station used final
circuits different fire compartments
are served
–
ONLITE central eBox SUB E00
Standard SUB station E00 IP20 to
supply final circuits without crossing any
fire compartment
–
ONLITE central eBox SUB IP65
Standard SUB station E00 IP65 to
supply final circuits without crossing any
fire compartment for rough environments
such industry, car parks under-
ground parking
. account interruption or
short-circuit, any logging data arrive late or
not all, emergency operation all
lumi
naires activated the final
circuit
