N
L
T1
PIR/Sc
N
L
PE
T2
G II
Group 1
LSD
daylight sensor
Sensors Control units
sna
Conventional
double momen-
tary-action light
switch
On/Off/Dim
Interior illuminance
sensor LSD
Mains 230 V/50 AC
Conventional
presence
detector
Alternatively:
conventional
momentary-
action light
switch scene

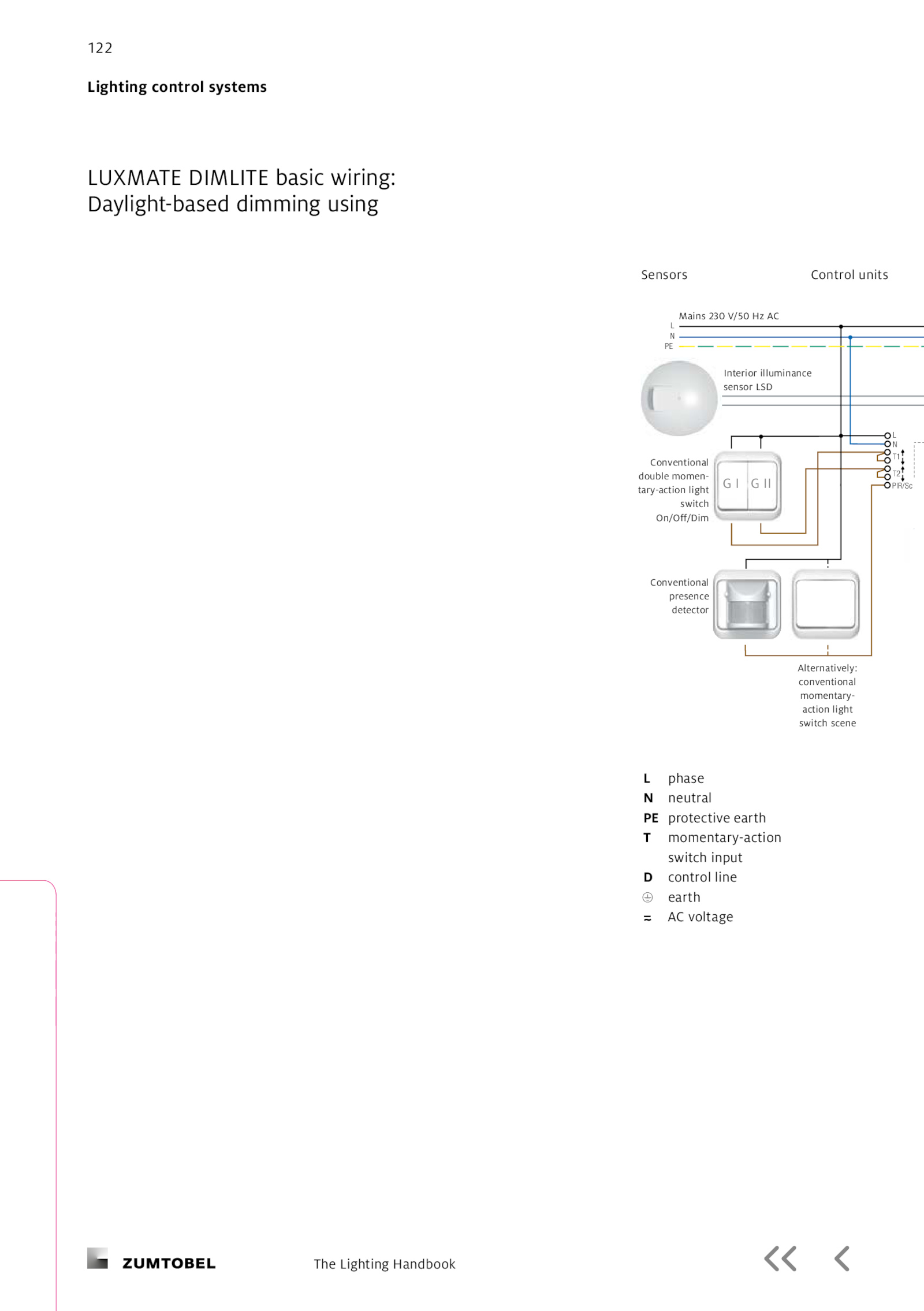

LUXMATE DIMLITE basic wiring:
Daylight-based dimming using
Lighting control systems
L phase
N neutral
PE protective earth
T momentary-action
switch input
D control line
v earth
~
– voltage
