Recommendation: use switchDIM for no
more than luminaires.
–
Works only with momentary-action
switch, not with regular switch!

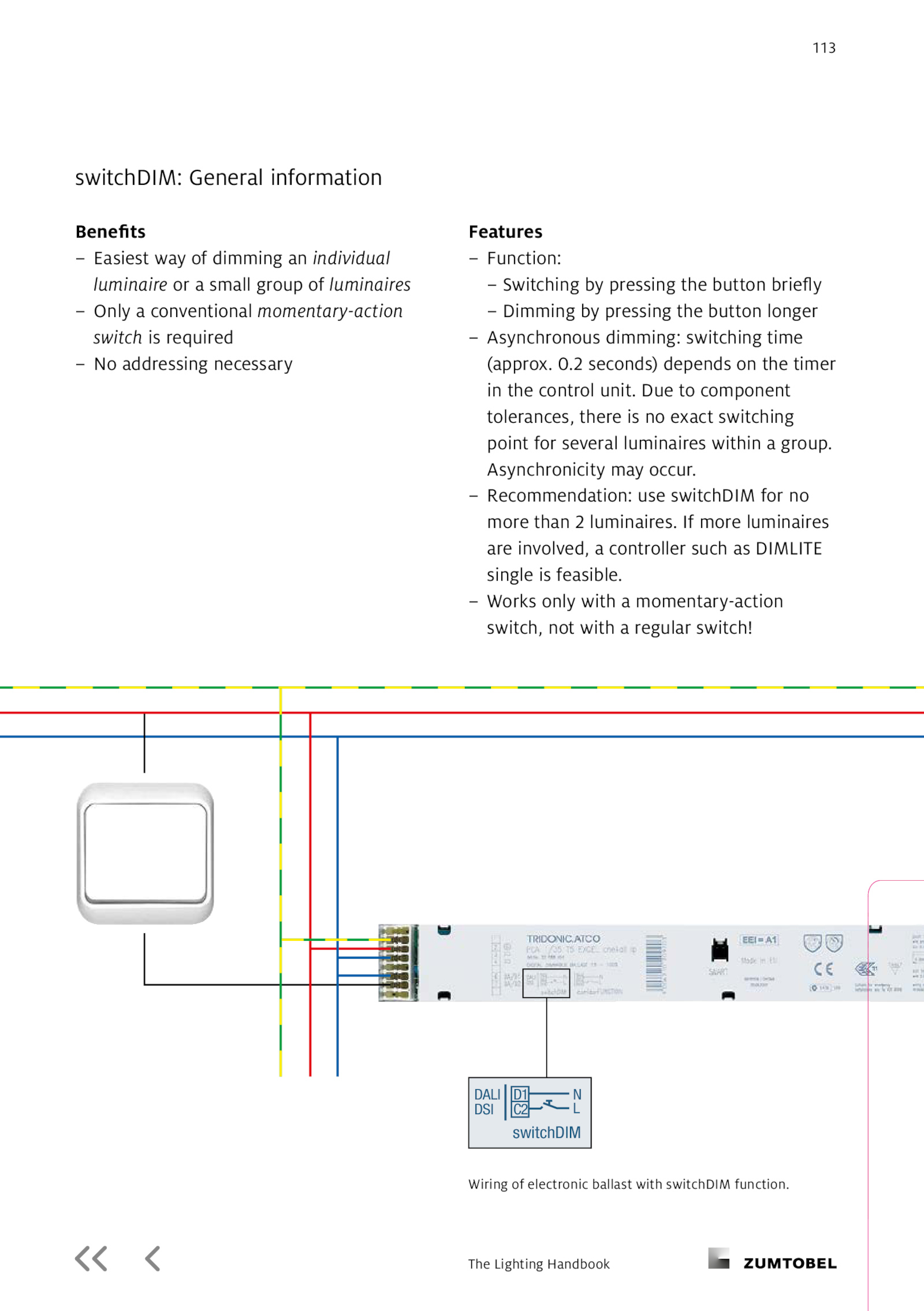

Wiring electronic ballast with switchDIM function. more luminaires
are involved, controller such DIMLITE
single feasible. Due component
tolerances, there exact switching
point for several luminaires within group.113
The Lighting Handbook
switchDIM: General information
Benefits
–
Easiest way dimming individual
luminaire small group luminaires
–
Only conventional momentary-action
switch required
–
No addressing necessary
Features
– Function:
– Switching pressing the button briefly
– Dimming pressing the button longer
–
Asynchronous dimming: switching time
(approx. 0.2 seconds) depends the timer
in the control unit.
Asynchronicity may occur.
DALI N
L
D1
C2
DSI
switchDIM
