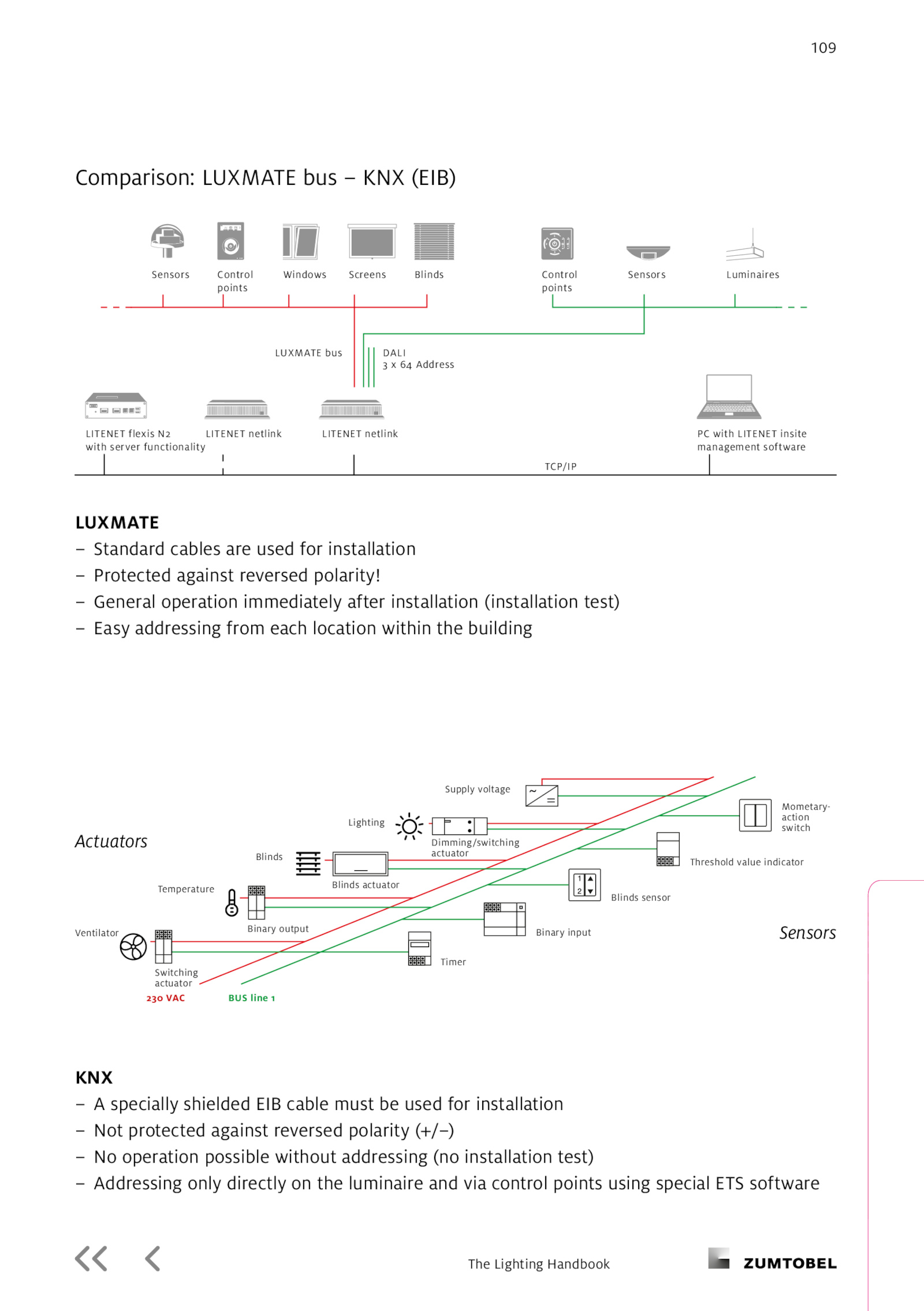

Comparison: LUXMATE bus KNX (EIB)
LUXMATE
– Standard cables are used for installation
– Protected against reversed polarity!
– General operation immediately after installation (installation test)
– Easy addressing from each location within the building
KNX
– specially shielded EIB cable must used for installation
– Not protected against reversed polarity (+/–)
– operation possible without addressing (no installation test)
– Addressing only directly the luminaire and via control points using special ETS software
Actuators
Sensors
TCP/IP
LITENET flexis N2
with server functionality
PC with LITENET insite
management software
LITENET netlink LITENET netlink
DALI
3 Address
LUXMATE bus
Control
points
Sensors Luminaires
Sensors Control
points
Windows Screens Blinds
