LED Status Description
PWR Internal power, initialising OK
Slow flash Initialisation progressing
Fast flash Initialisation error
LINK OFF Ethernet link TX
ON Good Ethernet link TX
Flash Ethernet data transmitted or
received interface
LINK OFF Ethernet link FX
ON Good Ethernet link FX
Flash Ethernet data transmitted or
received interface
FX DPX OFF Half dupex interface
ON Full duplex interface
LFF OFF Link fault forward not active
ON Link fault forward active and
has shutdown interface
LED Status Description
TX
SPD DPX
SPD OFF Mbit/s interface
ON 100 Mbit/s interface
DPX OFF Half duplex interface
ON Full duplex interface
.13
6645-2204

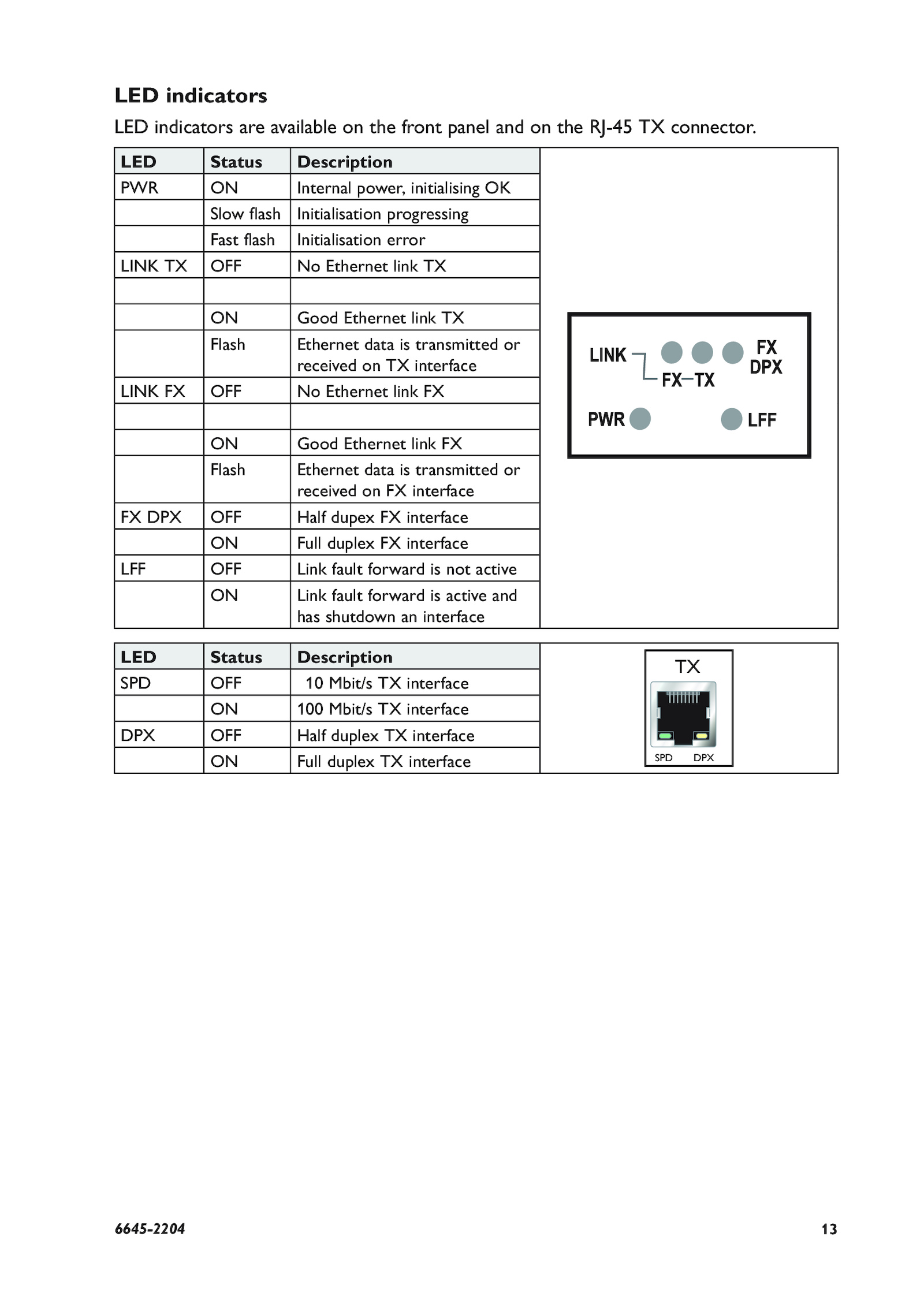

LED indicators
LED indicators are available the front panel and the RJ-45 connector
