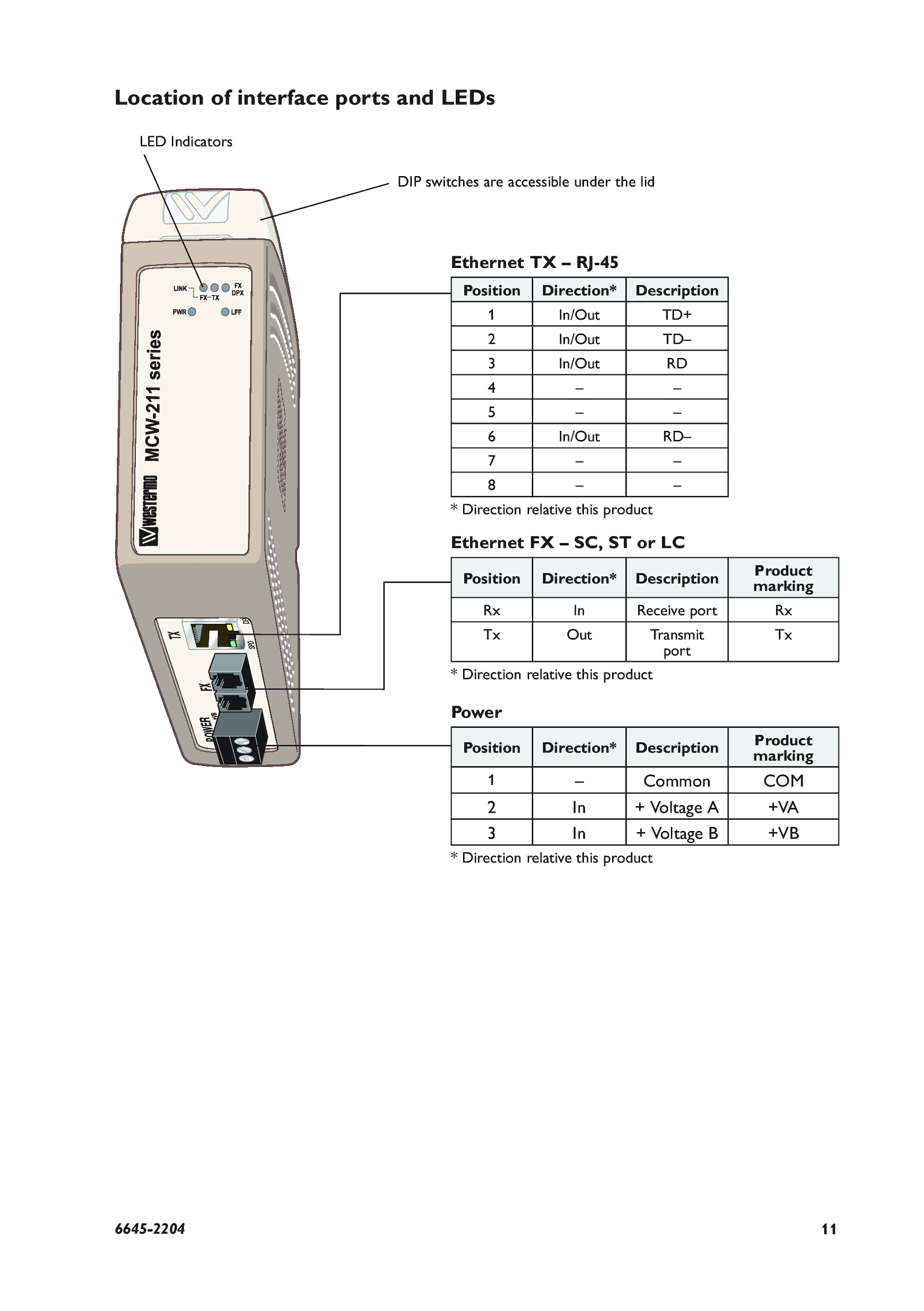

Location interface ports and LEDs
LED Indicators
Ethernet RJ-45
Position Direction* Description
1 In/Out TD+
2 In/Out TD–
3 In/Out RD
4 –
5 –
6 In/Out RD–
7 –
8 –
* Direction relative this product
Ethernet SC, LC
Position Direction* Description
Product
marking
Rx Receive port Rx
Tx Out Transmit
port
Tx
* Direction relative this product
Power
Position Direction* Description
Product
marking
1 Common COM
2 Voltage +VA
3 Voltage +VB
* Direction relative this product
DIP switches are accessible under the lid
