Smart Camera / Smart Sensor

| Kategorie: Návody k obsluze Montážní návody  |

Vydal: B&R Headquarters

Strana 24 z 105

Jak získat tento dokument?






Poznámky redaktora

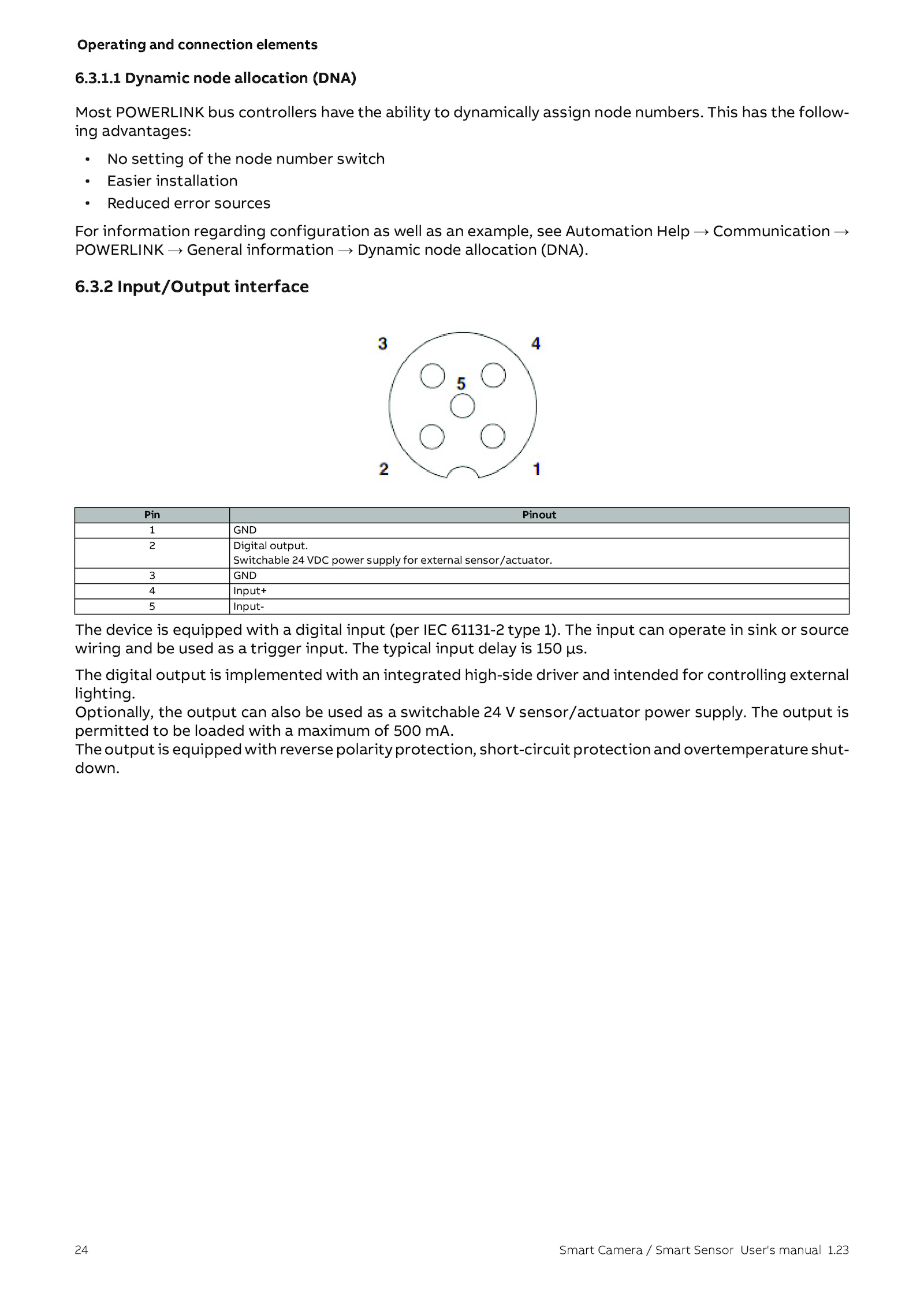

The digital output implemented with integrated high-side driver and intended for controlling external lighting.1. The input can operate sink source wiring and used trigger input.23 . Switchable VDC power supply for external sensor/actuator. The typical input delay 150 µs. The output equipped with reverse polarity protection, short-circuit protection and overtemperature shut- down.1 Dynamic node allocation (DNA) Most POWERLINK bus controllers have the ability dynamically assign node numbers. This has the follow- ing advantages: • setting the node number switch • Easier installation • Reduced error sources For information regarding configuration well example, see Automation Help Communication → POWERLINK General information Dynamic node allocation (DNA). 24 Smart Camera Smart Sensor User's manual 1. The output is permitted loaded with maximum 500 mA.2 Input/Output interface Pin Pinout 1 GND 2 Digital output.3.Operating and connection elements 6. 3 GND 4 Input+ 5 Input- The device equipped with digital input (per IEC 61131-2 type 1).3. Optionally, the output can also used switchable sensor/actuator power supply. 6
