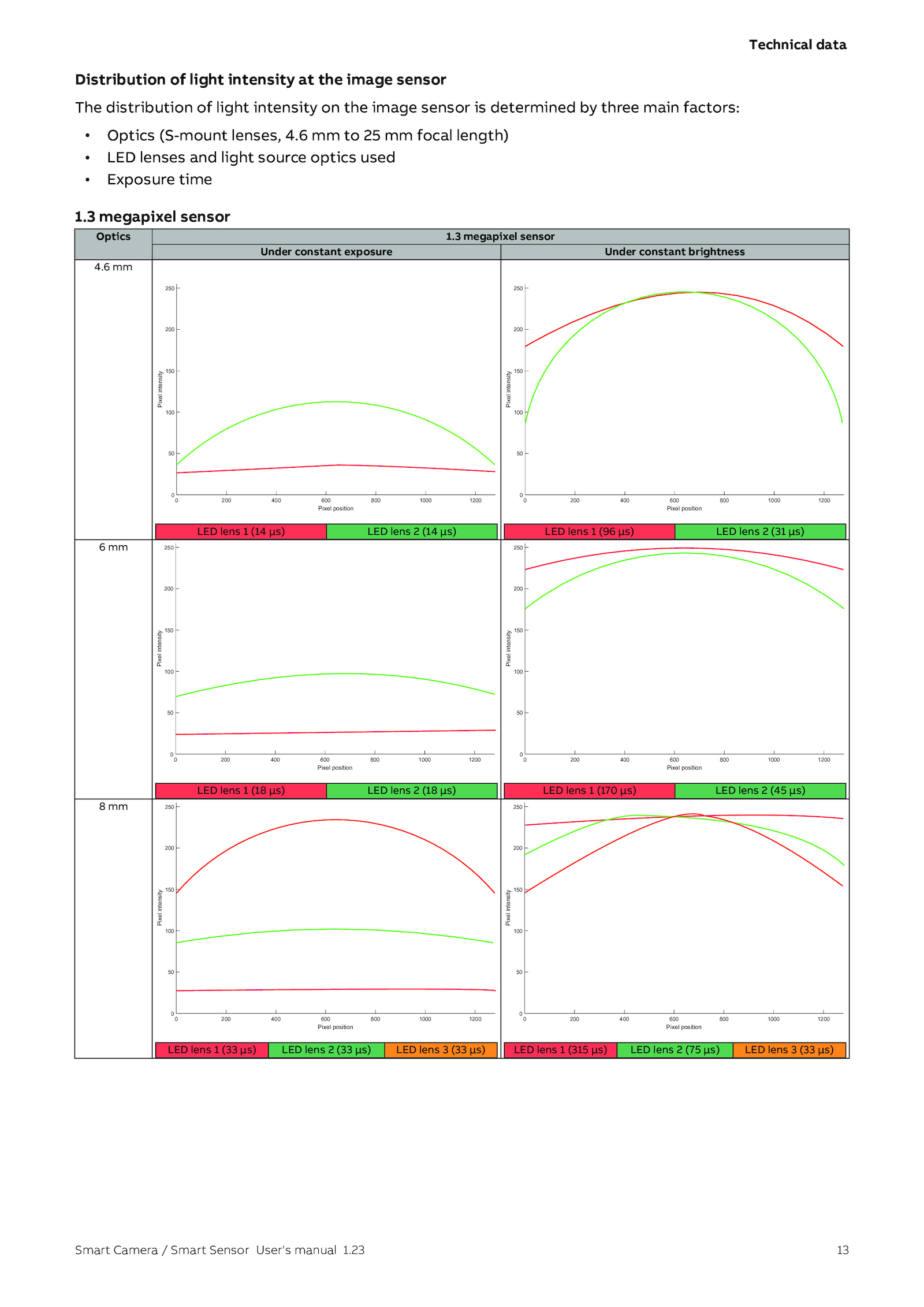

Technical data Distribution light intensity the image sensor The distribution light intensity the image sensor determined three main factors: • Optics (S-mount lenses, 4.6 focal length) • LED lenses and light source optics used • Exposure time 1.3 megapixel sensor 1.6 mm 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (14 µs) LED lens (14 µs) 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (96 µs) LED lens (31 µs) 6 mm 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (18 µs) LED lens (18 µs) 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (170 µs) LED lens (45 µs) 8 mm 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (33 µs) LED lens (33 µs) LED lens (33 µs) 0 200 400 600 800 1000 1200 0 50 100 150 200 250 Pixel intensity Pixel position LED lens (315 µs) LED lens (75 µs) LED lens (33 µs) Smart Camera Smart Sensor User's manual 1.3 megapixel sensor Optics Under constant exposure Under constant brightness 4.23 13
