PowerDIN 4PZ

| Kategorie: Leták / Datasheet | Tento dokument chci!

Vydal: HW group s.r.o.

Strana 46 z 80

Jak získat tento dokument?

Poznámky redaktora

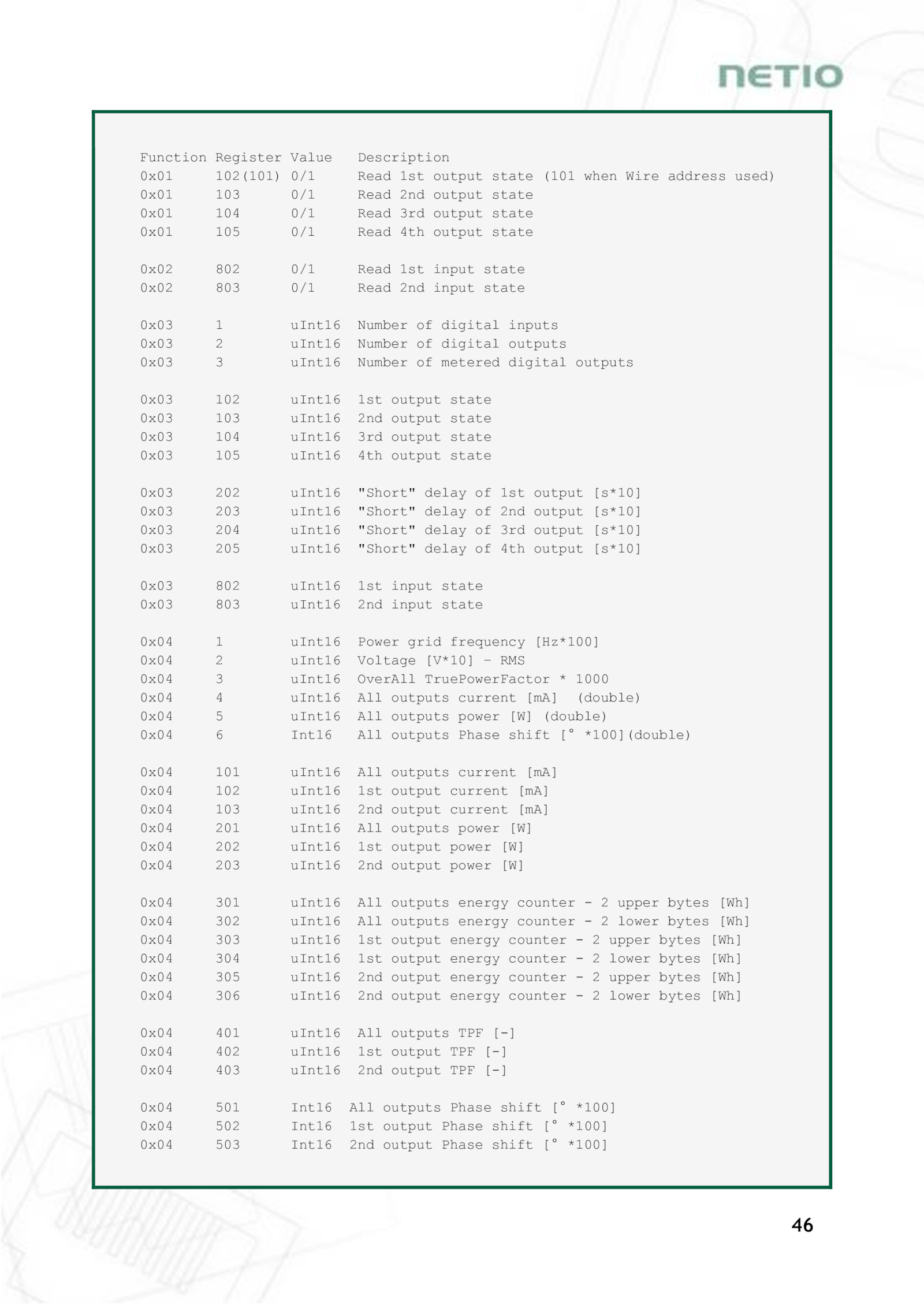

46 Function Register Value Description 0x01 102(101) 0/1 Read 1st output state (101 when Wire address used) 0x01 103 0/1 Read 2nd output state 0x01 104 0/1 Read 3rd output state 0x01 105 0/1 Read 4th output state 0x02 802 0/1 Read 1st input state 0x02 803 0/1 Read 2nd input state 0x03 uInt16 Number digital inputs 0x03 uInt16 Number digital outputs 0x03 uInt16 Number metered digital outputs 0x03 102 uInt16 1st output state 0x03 103 uInt16 2nd output state 0x03 104 uInt16 3rd output state 0x03 105 uInt16 4th output state 0x03 202 uInt16 "Short" delay 1st output [s*10] 0x03 203 uInt16 "Short" delay 2nd output [s*10] 0x03 204 uInt16 "Short" delay 3rd output [s*10] 0x03 205 uInt16 "Short" delay 4th output [s*10] 0x03 802 uInt16 1st input state 0x03 803 uInt16 2nd input state 0x04 uInt16 Power grid frequency [Hz*100] 0x04 uInt16 Voltage [V*10] RMS 0x04 uInt16 OverAll TruePowerFactor 1000 0x04 uInt16 All outputs current [mA] (double) 0x04 uInt16 All outputs power [W] (double) 0x04 Int16 All outputs Phase shift *100](double) 0x04 101 uInt16 All outputs current [mA] 0x04 102 uInt16 1st output current [mA] 0x04 103 uInt16 2nd output current [mA] 0x04 201 uInt16 All outputs power [W] 0x04 202 uInt16 1st output power [W] 0x04 203 uInt16 2nd output power [W] 0x04 301 uInt16 All outputs energy counter upper bytes [Wh] 0x04 302 uInt16 All outputs energy counter lower bytes [Wh] 0x04 303 uInt16 1st output energy counter upper bytes [Wh] 0x04 304 uInt16 1st output energy counter lower bytes [Wh] 0x04 305 uInt16 2nd output energy counter upper bytes [Wh] 0x04 306 uInt16 2nd output energy counter lower bytes [Wh] 0x04 401 uInt16 All outputs TPF [-] 0x04 402 uInt16 1st output TPF [-] 0x04 403 uInt16 2nd output TPF [-] 0x04 501 Int16 All outputs Phase shift *100] 0x04 502 Int16 1st output Phase shift *100] 0x04 503 Int16 2nd output Phase shift *100]
