2) Faradite committed making
products the highest quality and
reliability.
1: Strip the red and black KNX cable
cores back 6mm copper
2: Push into Wago terminals
3: Align and push the Wago
connector down onto the pins.
TECHNICAL DATA
Operating Voltage
21-31V SELV
(KNX Bus)
Current 19ma
KNX Medium TP- 256
Learn LED
Red located the
bottom left corner of
the coupler
Ambient
temperature
0-50 °C
(indoor only)
IP rating IP20
Backbox
UK (Square)
EU (Round)
Push-fit
connector
Wago 243-211
ELECTRICAL CONNECTIONS
It recommended use KNX cable
to connect the coupler the KNX
bus. Nevertheless, all electrical
components are subject natural
deterioration, and the product
durability will depend the
operating environment and
conditions use.
Be careful not over tighten this
will deflect the coupler and cause
issues when connecting the front
plate
MOUNTING SAFETY
PRECAUTIONS
1) not under any circumstance
use the device outside the range of
their ratings shown the technical
data.
Programming LED
86mm
50mm
.
Programming Button
DIMENSIONS
INSTALLATION
To install the Faradite KNX Coupler,
wire and connect the wago
connectors, line the coupler to
the screw holes the back box
and carefully tighten the screws.OVERVIEW

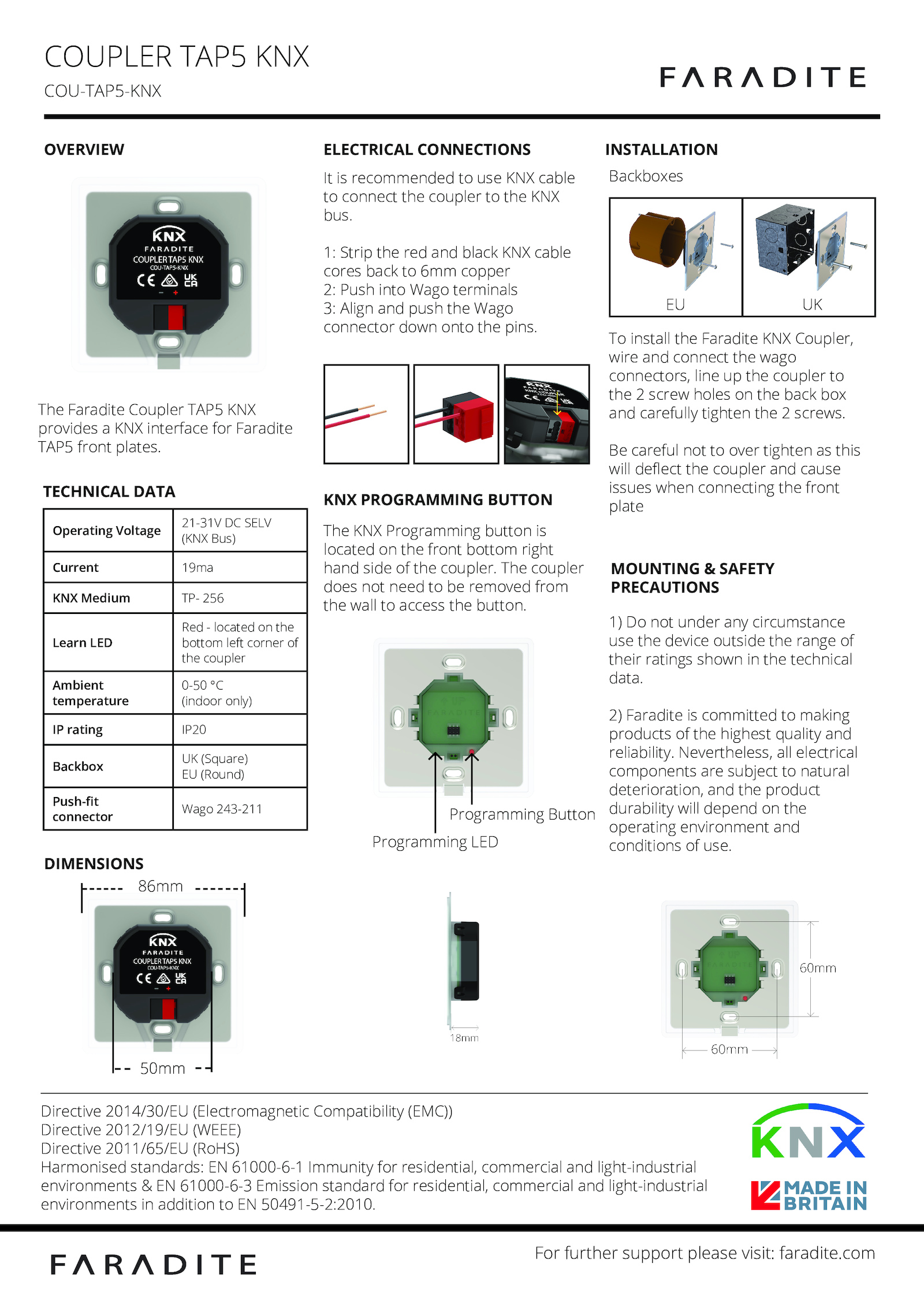

COUPLER TAP5 KNX
The Faradite Coupler TAP5 KNX
provides KNX interface for Faradite
TAP5 front plates.
COU-TAP5-KNX
KNX PROGRAMMING BUTTON
The KNX Programming button is
located the front bottom right
hand side the coupler. The coupler
does not need removed from
the wall access the button.
EU UK
Backboxes
For further support please visit: faradite.com
Directive 2014/30/EU (Electromagnetic Compatibility (EMC))
Directive 2012/19/EU (WEEE)
Directive 2011/65/EU (RoHS)
Harmonised standards: 61000-6-1 Immunity for residential, commercial and light-industrial
environments 61000-6-3 Emission standard for residential, commercial and light-industrial
environments addition 50491-5-2:2010
