vyrtych. This eliminates
bacteriums creation and more easier cleaning luminaire surface
as well. The luminaire will connected to
screwless terminal block and installed into false ceiling.Rated
power
output
(Im/W)
Lighting
fixture
luminous
flux (Im)
Power
input
(W)
Weight
(kg)
Order
number
Name
Ta max Dimensions
loQx lighting fixture
' (mml
SQ840
C
G
M
P
-
clear
tem
pered
safety
glass
+
m
icroprism
atic
plexiglass

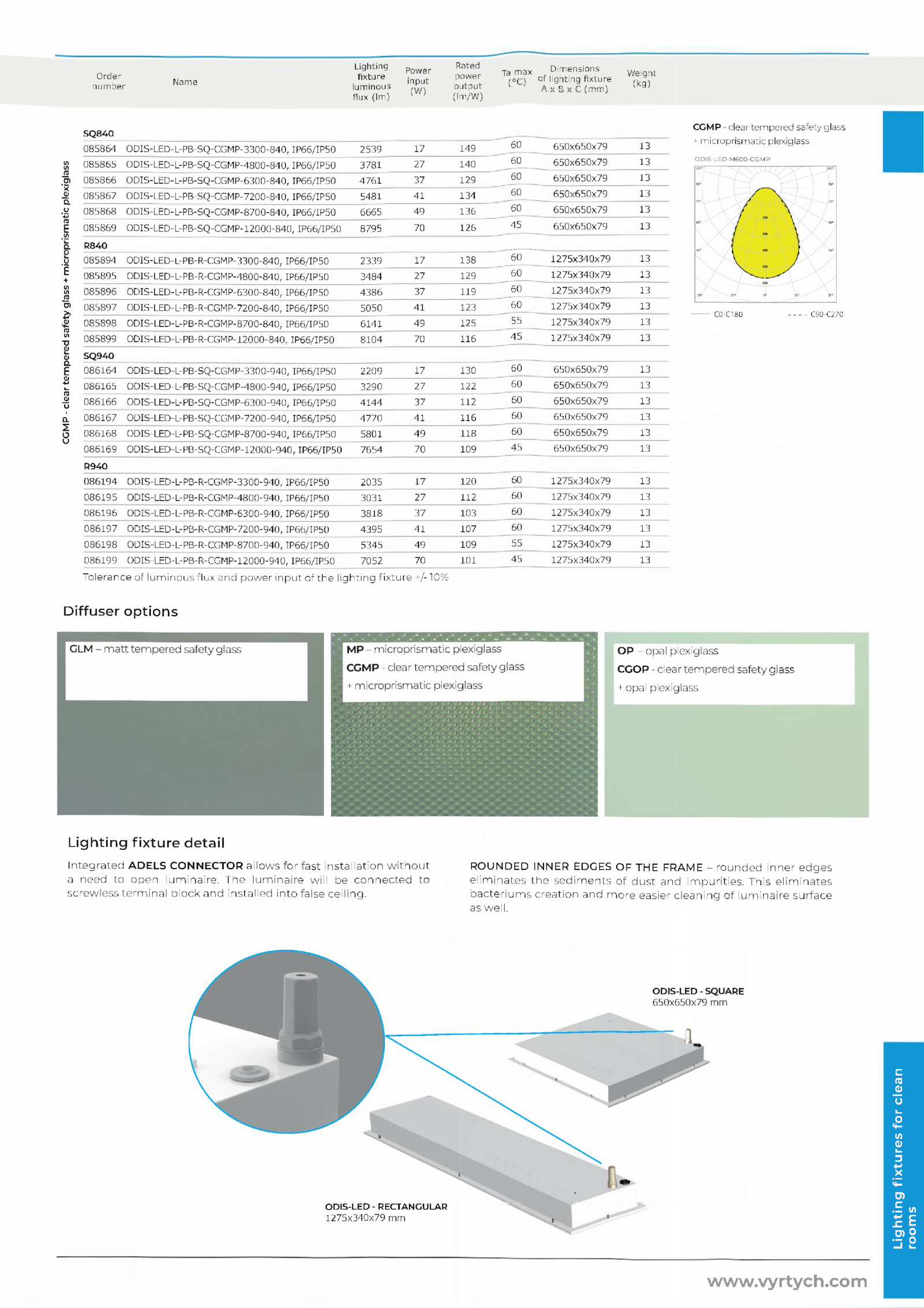

085864 ODIS-LED-L-PB-SQ-CGMP-3300-840, IP66/IP50 2539 149 60
60
650x650x79 13
085865 ODIS-LED-L-PB-SQ-CGMP-4800-840, IP66/IP50 3781 140 650x650x79 13
085866 ODIS-LED-L-PB-SQ-CGMP-6300-840, IP66/IP50 4761 129 650x650x79 13
085867 ODIS-LED-L-PB-SQ-CGMP-7200-840, IP66/IP50 5481 134 650x650x79 13
085868 ODIS-LED-L-PB-SQ-CGMP-8700-840, IP66/IP50 6665 136 650x650x79 13
085869 ODIS-LED-L-PB-SQ-CGMP-12000-840, IP66/IP50 8795 126 650x650x79 13
R840 _____
085894 ODIS-LED-L-PB-R-CGMP-3300-840, IP66/IP50 2339 138 1275x340x79 13
085895 ODIS-LED-L-PB-R-CGMP-4800-840, IP66/IP50 3484 129 1275x340x79 13
085896 ODIS-LED-L-PB-R-CGMP-6300-840, IP66/IP50 4386 119 1275x340x79 13
085897 ODIS-LED-L-PB-R-CGMP-7200-840, IP66/IP50 5050 123 1275x340x79 13
085898 ODIS-LED-L-PB-R-CGMP-8700-840, IP66/IP50 6141 125 1275x340x79 13
085899 ODIS-LED-L-PB-R-CGMP-12000-840, IP66/IP50 8104 116 1275x340x79 13
SQ94O
086164 ODIS-LED-L-PB-SQ-CGMP-3300-940, IP66/IP50 2209 130 650x650x79 13
086165 ODIS-LED-L-PB-SQ-CGMP-4800-940, IP66/IP50 3290 122 650x650x79 13
086166 ODIS-LED-L-PB-SQ-CGMP-6300-940, IP66/IP50 4144 112 650x650x79 13
086167 ODIS-LED-L-PB-SQ-CGMP-7200-940, IP66/IP50 4770 116 650x650x79 13
086168 ODIS-LED-L-PB-SQ-CGMP-8700-940, IP66/IP50 5801 118 650x650x79 13
086169 ODIS-LED-L-PB-SQ-CGMP-12000-940, IP66/IP50 7654 109 650x650x79 13
R940
086194 ODIS-LED-L-PB-R-CGMP-3300-940, IP66/IP50 2035 120 1275x340x79 13
086195 ODIS-LED-L-PB-R-CGMP-4800-940, IP66/IP50 3031 112 1275x340x79 13
086196 ODIS-LED-L-PB-R-CGMP-6300-940, IP66/IP50 3818 103 1275x340x79 13
086197 ODIS-LED-L-PB-R-CGMP-7200-940, IP66/IP50 4395 107 1275x340x79 13
086198 ODIS-LED-L-PB-R-CGMP-8700-940, IP66/IP50 5345 109 1275x340x79 13
086199 ODIS-LED-L-PB-R-CGMP-12000-940, IP66/IP50 7052 101 1275x340x79 13
Tolerance luminous flux and power input the lighting fixture +/-10%
CGMP clear tempered safety glass
+ microprismatic plexiglass
-------- C0-C180 -------- C90-C270
Diffuser options
Lighting fixture detail
Integrated ADELS CONNECTOR allows for fast installation without
a need open luminaire.
ODIS-LED RECTANGULAR
1275x340x79 mm
L
ig
h
tin
g
fix
tu
re
s
fo
r
clean
room
s
www.com
.
OP opal plexiglass
CCOP clear tempered safety glass
+ opal plexiglass
ROUNDED INNER EDGES THE FRAME rounded inner edges
eliminates the sediments dust and impurities
