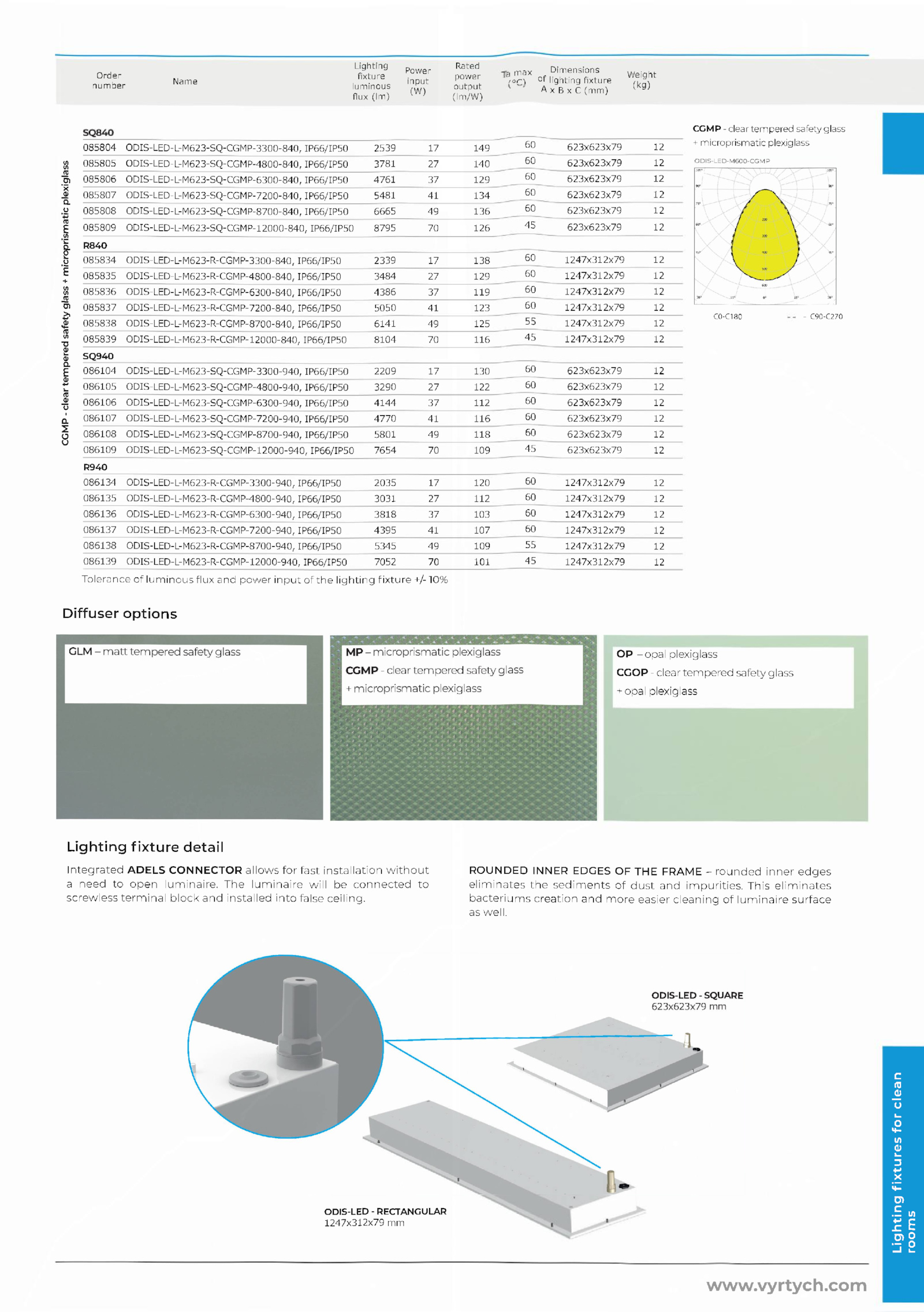

Lighting
fixture
luminous
flux (Im)
Rated
power
output
(Im/W)
Power
input
(W)
Weight
(kg)
Order
number Name
ä max Dimensions
/or) lighting fixture
A (mm)
C
G
M
P
-
clear
tem
p
ered
safety
glass
+
m
icroprism
atic
plexiglass
085804 ODIS-LED-L-M623-SQ-CGMP-3300-840, IP66/IP50 2539 149 623x623x79 12
085805 ODIS-LED-L-M623-SQ-CGMP-4800-840, IP66/IP50 3781 140 623x623x79 12
085806 ODIS-LED-L-M623-SQ-CGMP-6300-840, IP66/IP50 4761 129 623x623x79 12
085807 ODIS-LED-L-M623-SQ-CGMP-7200-840, IP66/IP50 5481 134 623x623x79 12
085808 ODIS-LED-L-M623-SQ-CGMP-8700-840, IP66/IP50 6665 136 623x623x79 12
085809 ODIS-LED-L-M623-SQ-CGMP-12000-840, IP66/IP50 8795 126 623x623x79 12
R840
085834 ODIS-LED-L-M623-R-CGMP-3300-840, IP66/IP50 2339 138 1247x312x79 12
085835 ODIS-LED-L-M623-R-CGMP-4800-840, IP66/IP50 3484 129 1247x312x79 12
085836 ODIS-LED-L-M623-R-CGMP-6300-840, IP66/IP50 4386 119 1247x312x79 12
085837 ODIS-LED-L-M623-R-CGMP-7200-840, IP66/IP50 5050 123 1247x312x79 12
085838 ODIS-LED-L-M623-R-CGMP-8700-840, IP66/IP50 6141 125 1247x312x79 12
085839 ODIS-LED-L-M623-R-CGMP-12000-840, IP66/IP50 8104 116 1247x312x79 12
SQ94O
086104 ODIS-LED-L-M623-SQ-CGMP-3300-940, IP66/IP50 2209 130 623x623x79 12
086105 ODIS-LED-L-M623-SQ-CGMP-4800-940, IP66/IP50 3290 122 623x623x79 12
086106 ODIS-LED-L-M623-SQ-CGMP-6300-940, IP66/IP50 4144 112 623x623x79 12
086107 ODIS-LED-L-M623-SQ-CGMP-7200-940, IP66/IP50 4770 116 623x623x79 12
086108 ODIS-LED-L-M623-SQ-CGMP-8700-940, IP66/IP50 5801 118 623x623x79 12
086109 ODIS-LED-L-M623-SQ-CGMP-12000-940, IP66/IP50 7654 109 623x623x79 12
R940
086134 ODIS-LED-L-M623-R-CGMP-3300-940, IP66/IP50 2035 120 1247x312x79 12
086135 ODIS-LED-L-M623-R-CGMP-4800-940, IP66/IP50 3031 112 1247x312x79 12
086136 ODIS-LED-L-M623-R-CGMP-6300-940, IP66/IP50 3818 103 1247x312x79 12
086137 ODIS-LED-L-M623-R-CGMP-7200-940, IP66/IP50 4395 107 1247x312x79 12
086138 ODIS-LED-L-M623-R-CGMP-8700-940, IP66/IP50 5345 109 1247x312x79 12
086139 ODIS-LED-L-M623-R-CGMP-12000-940, IP66/IP50 7052 101 1247x312x79 12
Tolerance luminous flux and power input the lighting fixture +/-10%
CGMP clear tempered safety glass
+ microprismatic plexiglass
-------- C0-C180 C90-C270
Diffuser options
Lighting fixture detail
Integrated ADELS CONNECTOR allows for fast installation without
a need open luminaire.com
.
ODIS-LED RECTANGULAR
1247x312x79 mm
L
ig
h
tin
g
fix
tu
re
s
fo
r
clean
room
s
www.
OP opal plexiglass
CCOP clear tempered safety glass
+ opal plexiglass
ROUNDED INNER EDGES THE FRAME rounded inner edges
eliminates the sediments dust and impurities. This eliminates
bacteriums creation and more easier cleaning luminaire surface
as well. The luminaire will connected to
screwless terminal block and installed into false ceiling.vyrtych
