. This eliminates
bacteriums creation and more easier cleaning luminaire surface
as well.
ODIS-LED RECTANGULAR
1198x298x79 mm
L
ig
h
tin
g
fix
tu
re
s
fo
r
clean
room
s
www.
OP opal plexiglass
CCOP clear tempered safety glass
+ opal plexiglass
ROUNDED INNER EDGES THE FRAME rounded inner edges
eliminates the sediments dust and impurities. The luminaire will connected to
screwless terminal block and installed into false ceiling.Weight
(kg)
Order
number
Name
Lighting
fixture
luminous
Power
input
(W)
Rated
power
output
Ta max
(°C)
Dimensions
of lighting fixture
A (mm)
flux (Im) (Im/W)
C
G
M
P
-
clear
tem
p
ered
safety
glass
+
m
icroprism
atic
plexiglass

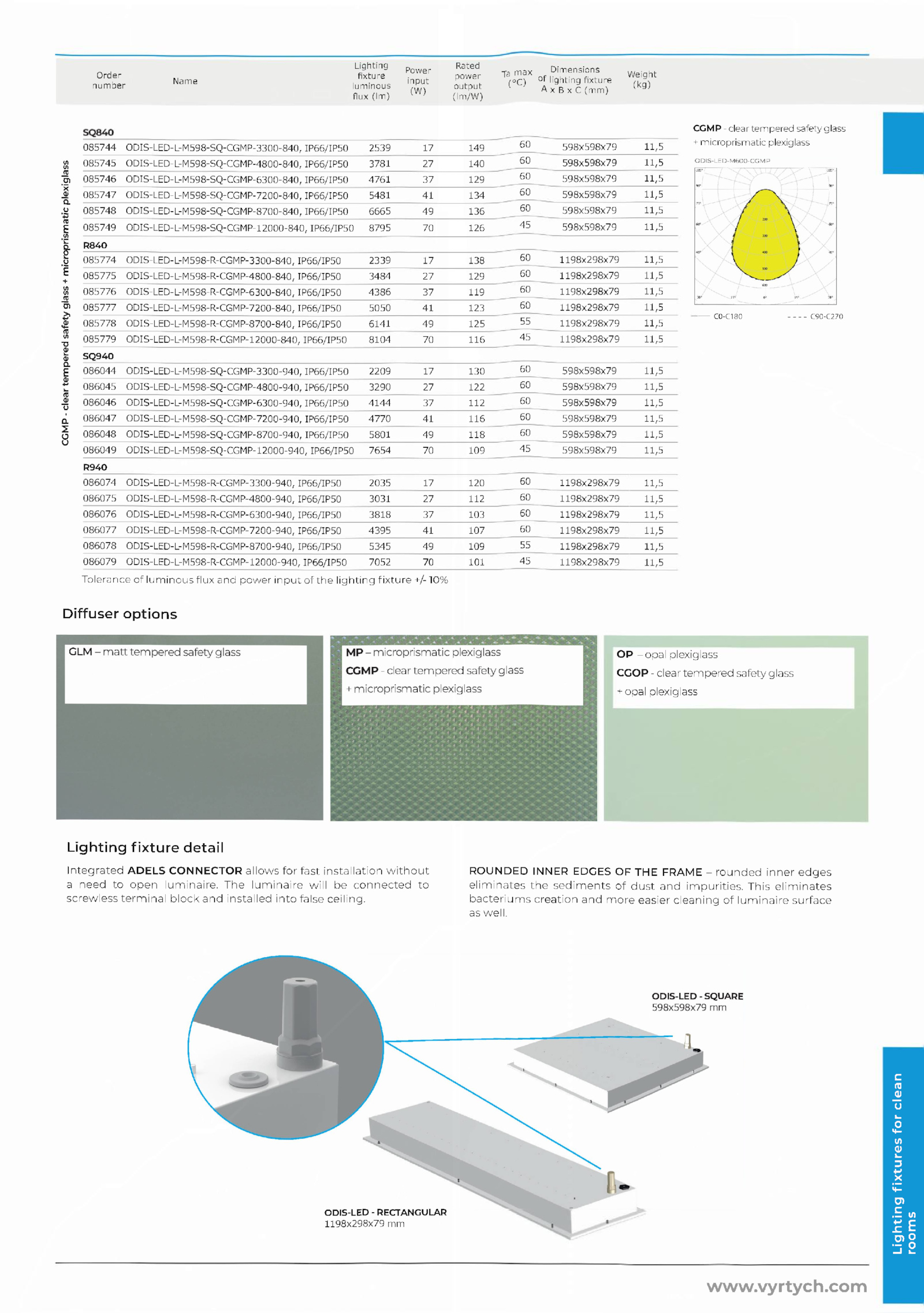

085744 ODIS-LED-L-M598-SQ-CGMP-3300-840, IP66/IP50 2539 149 598x598x79 11,5
085745 ODIS-LED-L-M598-SQ-CGMP-4800-840, IP66/IP50 3781 140 598x598x79 11,5
085746 ODIS-LED-L-M598-SQ-CGMP-6300-840, IP66/IP50 4761 129 598x598x79 11,5
085747 ODIS-LED-L-M598-SQ-CGMP-7200-840, IP66/IP50 5481 134 598x598x79 11,5
085748 ODIS-LED-L-M598-SQ-CGMP-8700-840, IP66/IP50 6665 136 598x598x79 11,5
085749 ODIS-LED-L-M598-SQ-CGMP-12000-840, IP66/IP50 8795 126 598x598x79 11,5
R84O
085774 ODIS-LED-L-M598-R-CGMP-3300-840, IP66/IP50 2339 138 1198x298x79 11,5
085775 ODIS-LED-L-M598-R-CGMP-4800-840, IP66/IP50 3484 129 1198x298x79 11,5
085776 ODIS-LED-L-M598-R-CGMP-6300-840, IP66/IP50 4386 119 1198x298x79 11,5
085777 ODIS-LED-L-M598-R-CGMP-7200-840, IP66/IP50 5050 123 1198x298x79 11,5
085778 ODIS-LED-L-M598-R-CGMP-8700-840, IP66/IP50 6141 125 1198x298x79 11,5
085779 ODIS-LED-L-M598-R-CGMP-12000-840, IP66/IP50 8104 116 1198x298x79 11,5
SQ94O
086044 ODIS-LED-L-M598-SQ-CGMP-3300-940, IP66/IP50 2209 130 598x598x79 11,5
086045 ODIS-LED-L-M598-SQ-CGMP-4800-940, IP66/IP50 3290 122 598x598x79 11,5
086046 ODIS-LED-L-M598-SQ-CGMP-6300-940, IP66/IP50 4144 112 598x598x79 11,5
086047 ODIS-LED-L-M598-SQ-CGMP-7200-940, IP66/IP50 4770 116 598x598x79 11,5
086048 ODIS-LED-L-M598-SQ-CGMP-8700-940, IP66/IP50 5801 118 598x598x79 11,5
086049 ODIS-LED-L-M598-SQ-CGMP-12000-940, IP66/IP50 7654 109 598x598x79 11,5
R940
086074 ODIS-LED-L-M598-R-CGMP-3300-940, IP66/IP50 2035 120 1198x298x79 11,5
086075 ODIS-LED-L-M598-R-CGMP-4800-940, IP66/IP50 3031 112 1198x298x79 11,5
086076 ODIS-LED-L-M598-R-CGMP-6300-940, IP66/IP50 3818 103 1198x298x79 11,5
086077 ODIS-LED-L-M598-R-CGMP-7200-940, IP66/IP50 4395 107 1198x298x79 11,5
086078 ODIS-LED-L-M598-R-CGMP-8700-940, IP66/IP50 5345 109 1198x298x79 11,5
086079 ODIS-LED-L-M598-R-CGMP-12000-940, IP66/IP50 7052 101 1198x298x79 11,5
Tolerance luminous flux and power input the lighting fixture +/-10%
CGMP clear tempered safety glass
+ microprismatic plexiglass
----- C0-C180 -------- C90-C270
Diffuser options
Lighting fixture detail
Integrated ADELS CONNECTOR allows for fast installation without
a need open luminaire.vyrtych
