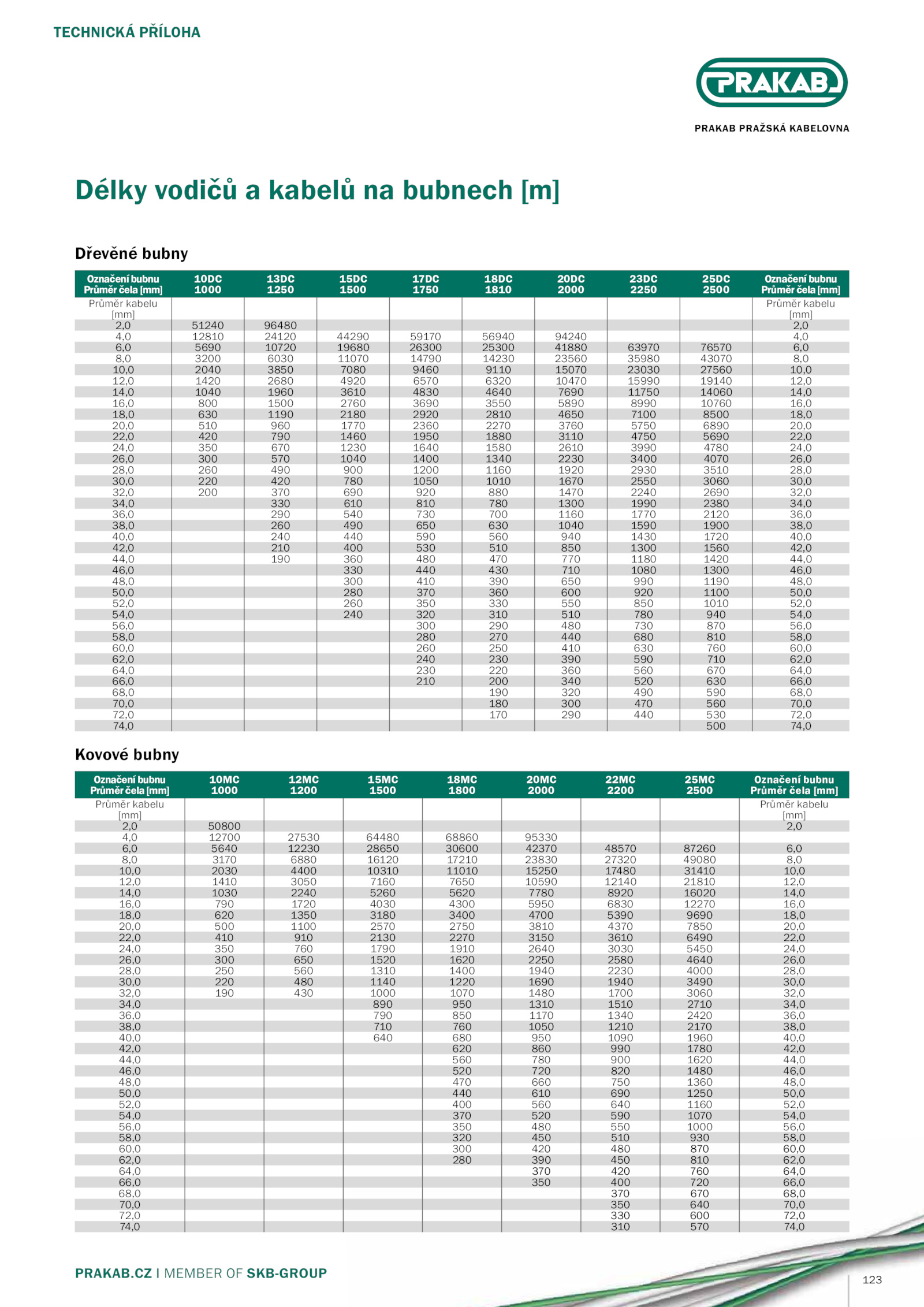

Délky vodičů kabelů bubnech [m]
Označení bubnu
Průměr čela [mm]
10DC
1000
13DC
1250
15DC
1500
17DC
1750
18DC
1810
20DC
2000
23DC
2250
25DC
2500
Označení bubnu
Průměr čela [mm]
Průměr kabelu
[mm]
Průměr kabelu
[mm]
2,0 51240 96480 2,0
4,0 12810 24120 44290 59170 56940 94240 4,0
6,0 5690 10720 19680 26300 25300 41880 63970 76570 6,0
8,0 3200 6030 11070 14790 14230 23560 35980 43070 8,0
10,0 2040 3850 7080 9460 9110 15070 23030 27560 10,0
12,0 1420 2680 4920 6570 6320 10470 15990 19140 12,0
14,0 1040 1960 3610 4830 4640 7690 11750 14060 14,0
16,0 800 1500 2760 3690 3550 5890 8990 10760 16,0
18,0 630 1190 2180 2920 2810 4650 7100 8500 18,0
20,0 510 960 1770 2360 2270 3760 5750 6890 20,0
22,0 420 790 1460 1950 1880 3110 4750 5690 22,0
24,0 350 670 1230 1640 1580 2610 3990 4780 24,0
26,0 300 570 1040 1400 1340 2230 3400 4070 26,0
28,0 260 490 900 1200 1160 1920 2930 3510 28,0
30,0 220 420 780 1050 1010 1670 2550 3060 30,0
32,0 200 370 690 920 880 1470 2240 2690 32,0
34,0 330 610 810 780 1300 1990 2380 34,0
36,0 290 540 730 700 1160 1770 2120 36,0
38,0 260 490 650 630 1040 1590 1900 38,0
40,0 240 440 590 560 940 1430 1720 40,0
42,0 210 400 530 510 850 1300 1560 42,0
44,0 190 360 480 470 770 1180 1420 44,0
46,0 330 440 430 710 1080 1300 46,0
48,0 300 410 390 650 990 1190 48,0
50,0 280 370 360 600 920 1100 50,0
52,0 260 350 330 550 850 1010 52,0
54,0 240 320 310 510 780 940 54,0
56,0 300 290 480 730 870 56,0
58,0 280 270 440 680 810 58,0
60,0 260 250 410 630 760 60,0
62,0 240 230 390 590 710 62,0
64,0 230 220 360 560 670 64,0
66,0 210 200 340 520 630 66,0
68,0 190 320 490 590 68,0
70,0 180 300 470 560 70,0
72,0 170 290 440 530 72,0
74,0 500 74,0
Označení bubnu
Průměr čela [mm]
10MC
1000
12MC
1200
15MC
1500
18MC
1800
20MC
2000
22MC
2200
25MC
2500
Označení bubnu
Průměr čela [mm]
Průměr kabelu
[mm]
Průměr kabelu
[mm]
2,0 50800 2,0
4,0 12700 27530 64480 68860 95330
6,0 5640 12230 28650 30600 42370 48570 87260 6,0
8,0 3170 6880 16120 17210 23830 27320 49080 8,0
10,0 2030 4400 10310 11010 15250 17480 31410 10,0
12,0 1410 3050 7160 7650 10590 12140 21810 12,0
14,0 1030 2240 5260 5620 7780 8920 16020 14,0
16,0 790 1720 4030 4300 5950 6830 12270 16,0
18,0 620 1350 3180 3400 4700 5390 9690 18,0
20,0 500 1100 2570 2750 3810 4370 7850 20,0
22,0 410 910 2130 2270 3150 3610 6490 22,0
24,0 350 760 1790 1910 2640 3030 5450 24,0
26,0 300 650 1520 1620 2250 2580 4640 26,0
28,0 250 560 1310 1400 1940 2230 4000 28,0
30,0 220 480 1140 1220 1690 1940 3490 30,0
32,0 190 430 1000 1070 1480 1700 3060 32,0
34,0 890 950 1310 1510 2710 34,0
36,0 790 850 1170 1340 2420 36,0
38,0 710 760 1050 1210 2170 38,0
40,0 640 680 950 1090 1960 40,0
42,0 620 860 990 1780 42,0
44,0 560 780 900 1620 44,0
46,0 520 720 820 1480 46,0
48,0 470 660 750 1360 48,0
50,0 440 610 690 1250 50,0
52,0 400 560 640 1160 52,0
54,0 370 520 590 1070 54,0
56,0 350 480 550 1000 56,0
58,0 320 450 510 930 58,0
60,0 300 420 480 870 60,0
62,0 280 390 450 810 62,0
64,0 370 420 760 64,0
66,0 350 400 720 66,0
68,0 370 670 68,0
70,0 350 640 70,0
72,0 330 600 72,0
74,0 310 570 74,0
Dřevěné bubny
Kovové bubny
TECHNICKÁ PŘÍLOHA
