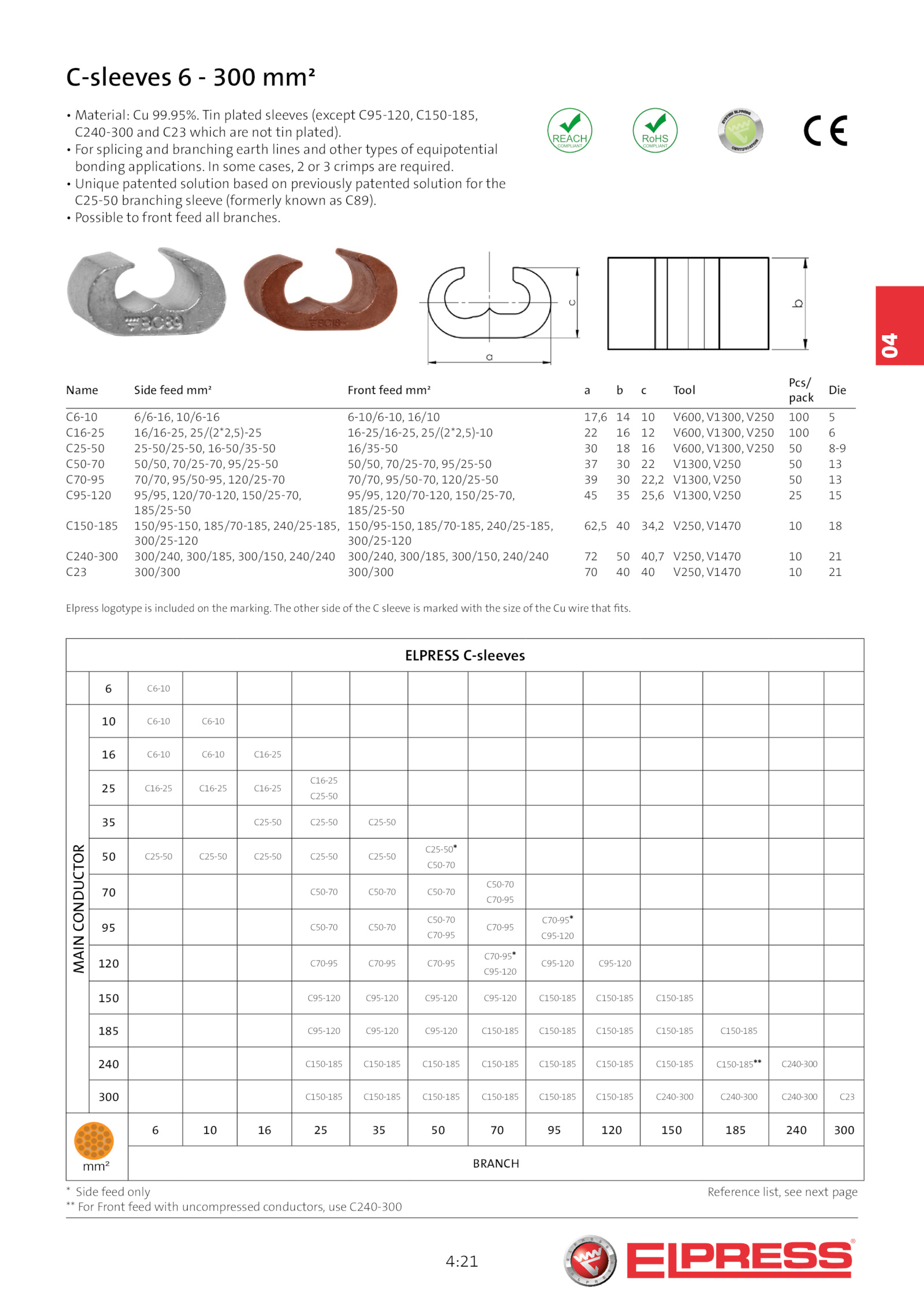

C-sleeves 300 mm²
• Material: 99. some cases, crimps are required.
• Unique patented solution based previously patented solution for the
C25-50 branching sleeve (formerly known C89).
• For splicing and branching earth lines and other types equipotential
bonding applications.
Name Side feed mm² Front feed mm² Tool
Pcs/
pack
Die
C6-10 6/6-16, 10/6-16 6-10/6-10, 16/10 17,6 V600, V1300, V250 100 5
C16-25 16/16-25, 25/(2*2,5)-25 16-25/16-25, 25/(2*2,5)-10 V600, V1300, V250 100 6
C25-50 25-50/25-50, 16-50/35-50 16/35-50 V600, V1300, V250 8-9
C50-70 50/50, 70/25-70, 95/25-50 50/50, 70/25-70, 95/25-50 V1300, V250 13
C70-95 70/70, 95/50-95, 120/25-70 70/70, 95/50-70, 120/25-50 22,2 V1300, V250 13
C95-120 95/95, 120/70-120, 150/25-70,
185/25-50
95/95, 120/70-120, 150/25-70,
185/25-50
45 25,6 V1300, V250 15
C150-185 150/95-150, 185/70-185, 240/25-185,
300/25-120
150/95-150, 185/70-185, 240/25-185,
300/25-120
62,5 34,2 V250, V1470 18
C240-300 300/240, 300/185, 300/150, 240/240 300/240, 300/185, 300/150, 240/240 40,7 V250, V1470 21
C23 300/300 300/300 V250, V1470 21
Elpress logotype included the marking.
ELPRESS C-sleeves
6 C6-10
MAIN
CONDUCTOR
10 C6-10 C6-10
16 C6-10 C6-10 C16-25
25 C16-25 C16-25 C16-25
C16-25
C25-50
35 C25-50 C25-50 C25-50
50 C25-50 C25-50 C25-50 C25-50 C25-50
C25-50*
C50-70
70 C50-70 C50-70 C50-70
C50-70
C70-95
95 C50-70 C50-70
C50-70
C70-95
C70-95
C70-95*
C95-120
120 C70-95 C70-95 C70-95
C70-95*
C95-120
C95-120 C95-120
150 C95-120 C95-120 C95-120 C95-120 C150-185 C150-185 C150-185
185 C95-120 C95-120 C95-120 C150-185 C150-185 C150-185 C150-185 C150-185
240 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185** C240-300
300 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C240-300 C240-300 C240-300 C23
mm²
6 120 150 185 240 300
BRANCH
* Side feed only
** For Front feed with uncompressed conductors, use C240-300
Reference list, see next page
. The other side the sleeve marked with the size the wire that fits. Tin plated sleeves (except C95-120, C150-185,
C240-300 and C23 which are not tin plated).
• Possible front feed all branches
