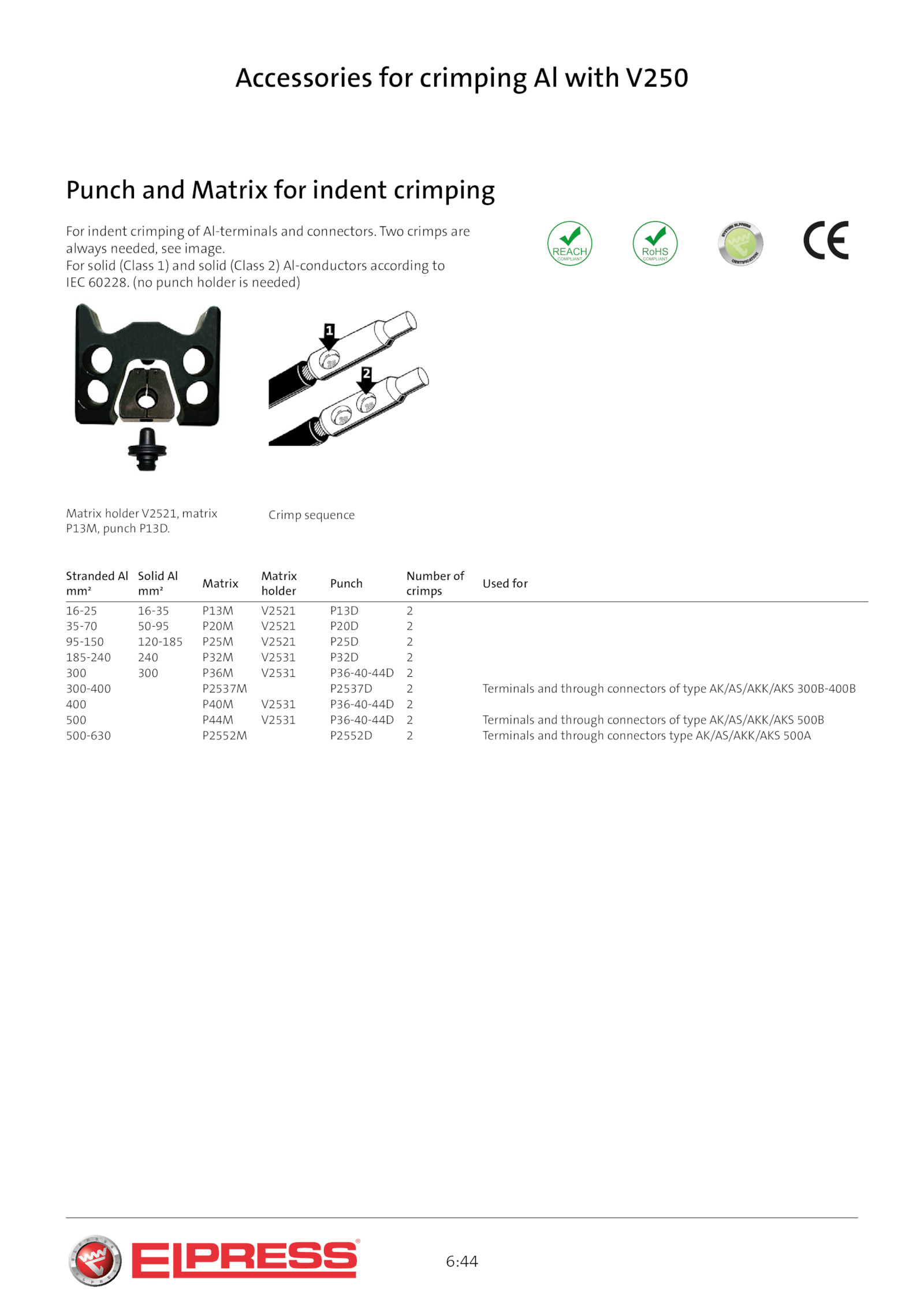

Accessories for crimping with V250
Punch and Matrix for indent crimping
For indent crimping Al-terminals and connectors.
Crimp sequence
Stranded Al
mm²
Solid Al
mm²
Matrix
Matrix
holder
Punch
Number of
crimps
Used for
16-25 16-35 P13M V2521 P13D 2
35-70 50-95 P20M V2521 P20D 2
95-150 120-185 P25M V2521 P25D 2
185-240 240 P32M V2531 P32D 2
300 300 P36M V2531 P36-40-44D 2
300-400 P2537M P2537D Terminals and through connectors type AK/AS/AKK/AKS 300B-400B
400 P40M V2531 P36-40-44D 2
500 P44M V2531 P36-40-44D Terminals and through connectors type AK/AS/AKK/AKS 500B
500-630 P2552M P2552D Terminals and through connectors type AK/AS/AKK/AKS 500A
. (no punch holder needed)
Matrix holder V2521, matrix
P13M, punch P13D. Two crimps are
always needed, see image.
For solid (Class and solid (Class Al-conductors according to
IEC 60228
