Unless otherwise stated, use die holder V1330.6:37
06

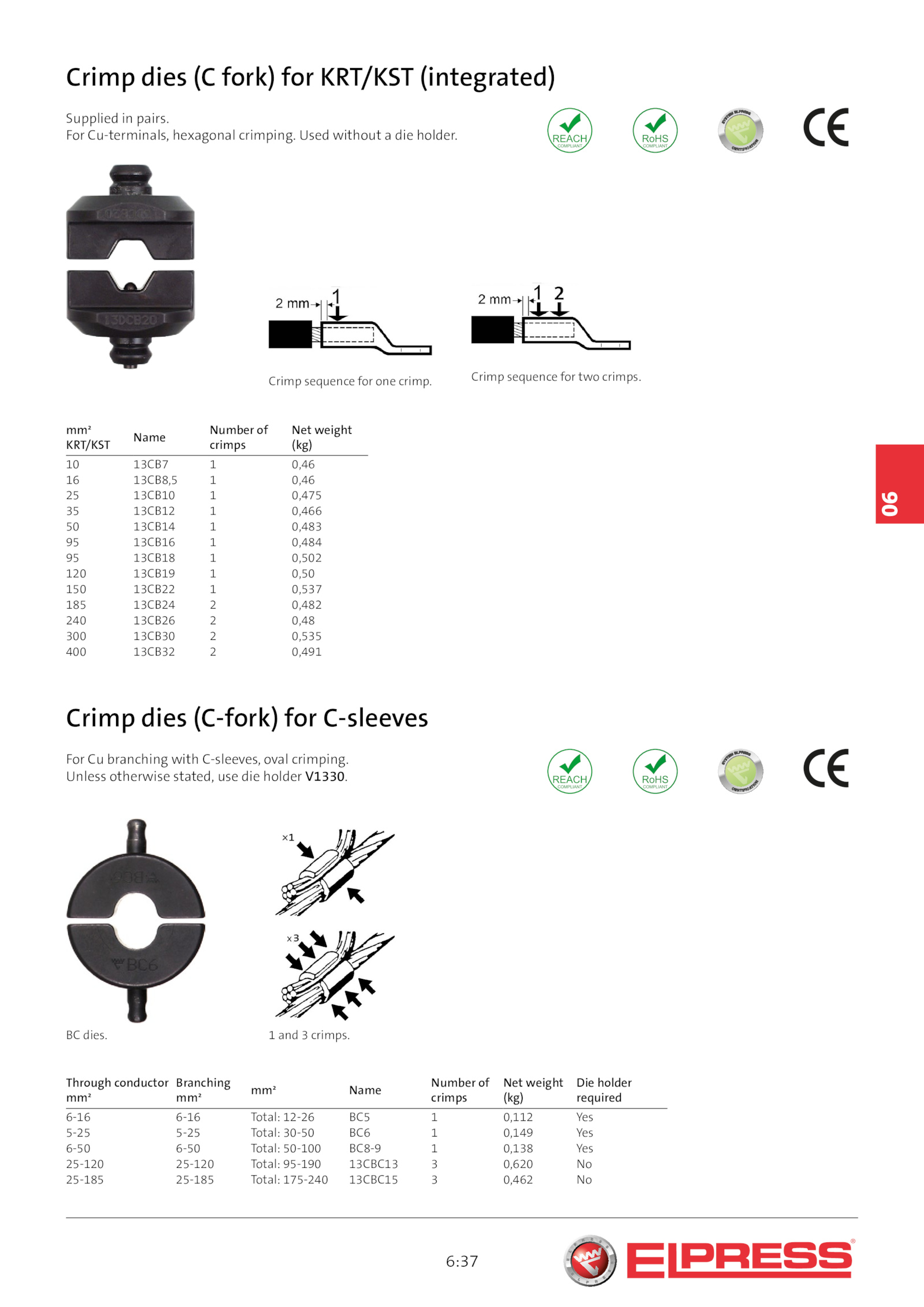

Crimp dies fork) for KRT/KST (integrated)
Supplied pairs. Used without die holder.
Through conductor
mm²
Branching
mm²
mm² Name
Number of
crimps
Net weight
(kg)
Die holder
required
6-16 6-16 Total: 12-26 BC5 0,112 Yes
5-25 5-25 Total: 30-50 BC6 0,149 Yes
6-50 6-50 Total: 50-100 BC8-9 0,138 Yes
25-120 25-120 Total: 95-190 13CBC13 0,620 No
25-185 25-185 Total: 175-240 13CBC15 0,462 No
.
BC dies.
Crimp sequence for one crimp. Crimp sequence for two crimps.
For Cu-terminals, hexagonal crimping. and crimps.
mm²
KRT/KST
Name
Number of
crimps
Net weight
(kg)
10 13CB7 0,46
16 13CB8,5 0,46
25 13CB10 0,475
35 13CB12 0,466
50 13CB14 0,483
95 13CB16 0,484
95 13CB18 0,502
120 13CB19 0,50
150 13CB22 0,537
185 13CB24 0,482
240 13CB26 0,48
300 13CB30 0,535
400 13CB32 0,491
Crimp dies (C-fork) for C-sleeves
For branching with C-sleeves, oval crimping
