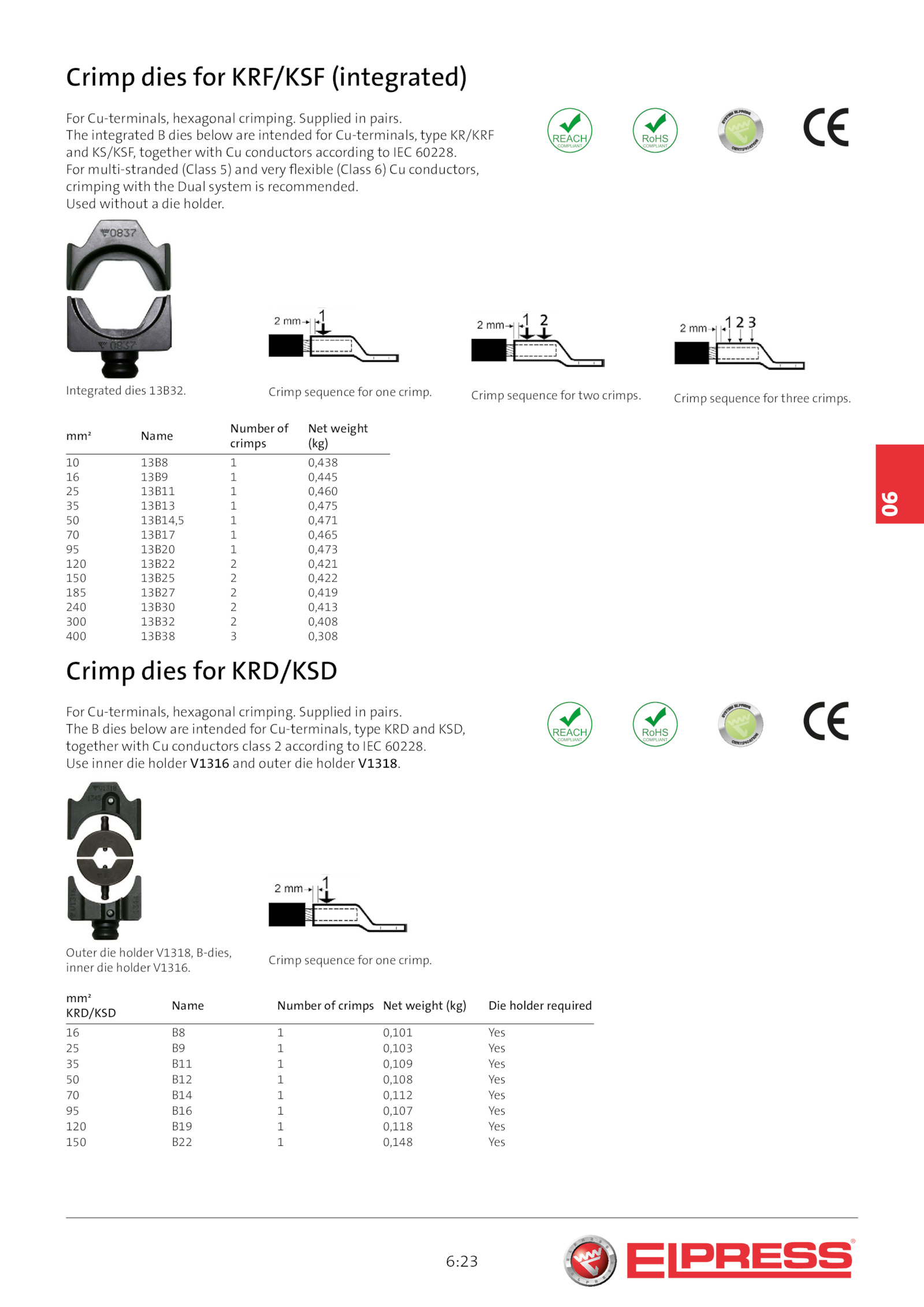

Crimp dies for KRF/KSF (integrated)
For Cu-terminals, hexagonal crimping. Crimp sequence for two crimps. Supplied pairs.
mm²
KRD/KSD
Name Number crimps Net weight (kg) Die holder required
16 0,101 Yes
25 0,103 Yes
35 B11 0,109 Yes
50 B12 0,108 Yes
70 B14 0,112 Yes
95 B16 0,107 Yes
120 B19 0,118 Yes
150 B22 0,148 Yes
.
Use inner die holder V1316 and outer die holder V1318.
Integrated dies 13B32.
mm² Name
Number of
crimps
Net weight
(kg)
10 13B8 0,438
16 13B9 0,445
25 13B11 0,460
35 13B13 0,475
50 13B14,5 0,471
70 13B17 0,465
95 13B20 0,473
120 13B22 0,421
150 13B25 0,422
185 13B27 0,419
240 13B30 0,413
300 13B32 0,408
400 13B38 0,308
Crimp dies for KRD/KSD
For Cu-terminals, hexagonal crimping. Supplied pairs.
The integrated dies below are intended for Cu-terminals, type KR/KRF
and KS/KSF, together with conductors according IEC 60228. Crimp sequence for one crimp.
Crimp sequence for one crimp. Crimp sequence for three crimps.
Outer die holder V1318, B-dies,
inner die holder V1316.
Used without die holder.
The dies below are intended for Cu-terminals, type KRD and KSD,
together with conductors class according IEC 60228.
For multi-stranded (Class and very flexible (Class conductors,
crimping with the Dual system recommended
