0 Ah, 18V
• charger Li-Ion Makita, charging time min 110-240VAC 50-60Hz
• DUAL: 300 mm²
Crimp geometries
mm²
(Cu)
mm²
(Stranded
Al)
mm²
(Solid
Al)
Name Crimp geometry
Net
weight
(kg)
Length
mm
Width Height Note
10-400 16-400 16-240 PVX1300 Punch, Dual, Hexagonal,
Oval
6,7 412 319 Delivered standard case
10-400 16-400 16-240 PVX1300DB Punch, Dual, Hexagonal,
Oval
7,3 412 319 Delivered with batteries
10-400 16-400 16-240 PVX1300-ADV Punch, Dual, Hexagonal,
Oval
14,2 412 319 Delivered CASE ADVANCED
10-400 16-400 16-240 PVX1300DB-ADV Punch, Dual, Hexagonal,
Oval
14,2 412 319 Delivered with batteries and CASE ADV.
10-400 16-400 16-240 PVX1300-WOBC-
ADV
Punch, Dual, Hexagonal,
Oval
12,4 412 319 Delivered CASE ADV.6:21
06

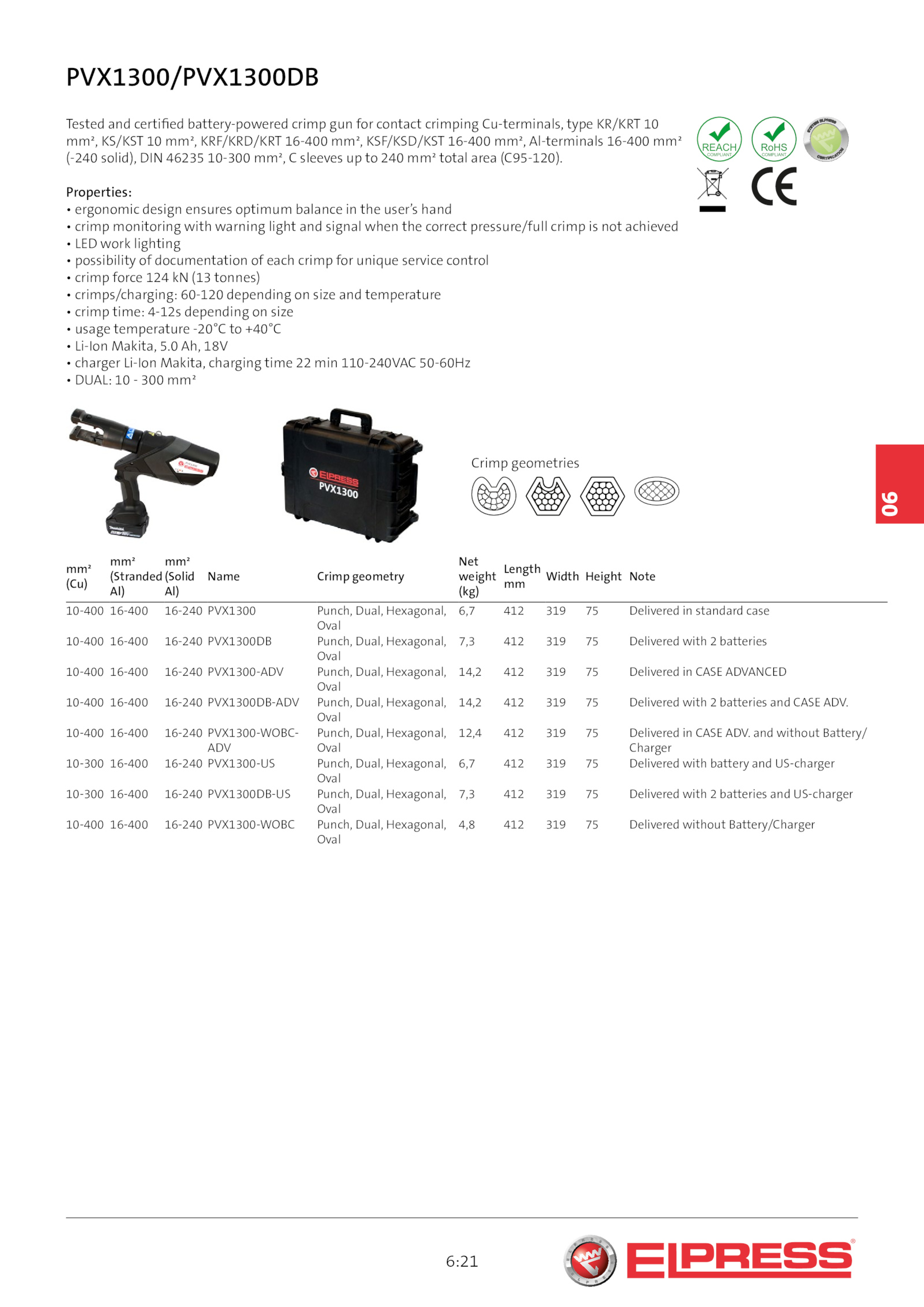

PVX1300/PVX1300DB
Tested and certified battery-powered crimp gun for contact crimping Cu-terminals, type KR/KRT 10
mm², KS/KST mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², Al-terminals 16-400 mm²
(-240 solid), DIN 46235 10-300 mm², sleeves 240 mm² total area (C95-120). and without Battery/
Charger
10-300 16-400 16-240 PVX1300-US Punch, Dual, Hexagonal,
Oval
6,7 412 319 Delivered with battery and US-charger
10-300 16-400 16-240 PVX1300DB-US Punch, Dual, Hexagonal,
Oval
7,3 412 319 Delivered with batteries and US-charger
10-400 16-400 16-240 PVX1300-WOBC Punch, Dual, Hexagonal,
Oval
4,8 412 319 Delivered without Battery/Charger
.
Properties:
• ergonomic design ensures optimum balance the user’s hand
• crimp monitoring with warning light and signal when the correct pressure/full crimp not achieved
• LED work lighting
• possibility documentation each crimp for unique service control
• crimp force 124 (13 tonnes)
• crimps/charging: 60-120 depending size and temperature
• crimp time: 4-12s depending size
• usage temperature -20°C +40°C
• Li-Ion Makita, 5
