Edge-Lit technology optimised microstructure has been
embossed transparent -plastic
panel create asymmetric light
distribution. the same time, the
luminaire’s light-emitting surface ap-
pears homogeneously lit. This
optic also used miniaturised
form MPO film. This
results pleasant brightness with a
high light output.
Light control technology
.
Mixing-chamber
lens system
The LEDs’ spectral components are
united the mixing chamber pro-
duce white light, focussed the lens
and directed the high-precision
reflector.
Micro-lens optic The film uses the lens effect paral-
lelize the light and thus produce a
linear light distribution. The light beams are
precisely directed, resulting glare-
reduced distribution light that is
thus suitable for use offices.82
The Lighting Handbook

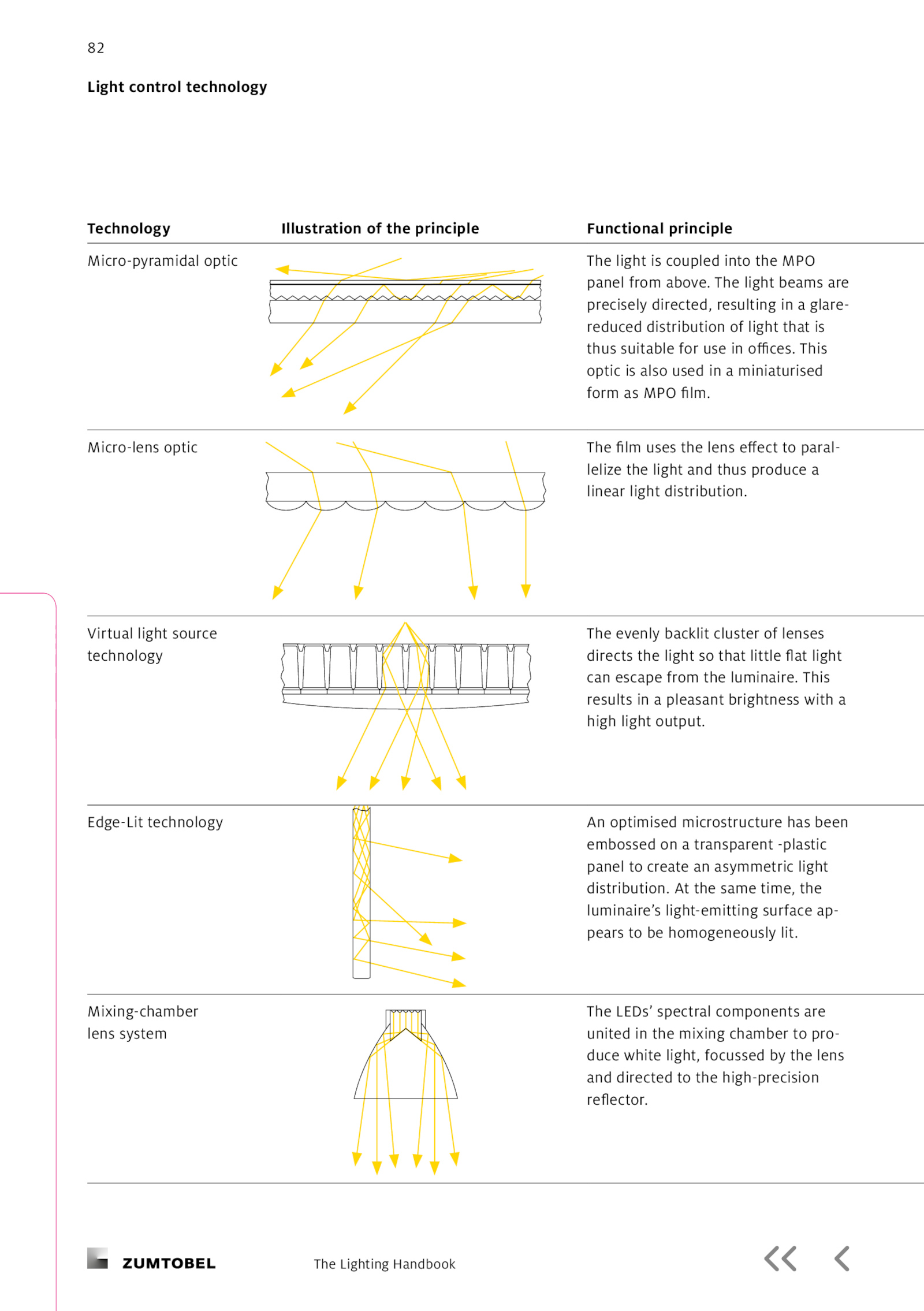

Technology Illustration the principle Functional principle
Micro-pyramidal optic The light coupled into the MPO
panel from above.
Virtual light source
technology
The evenly backlit cluster lenses
directs the light that little flat light
can escape from the luminaire
