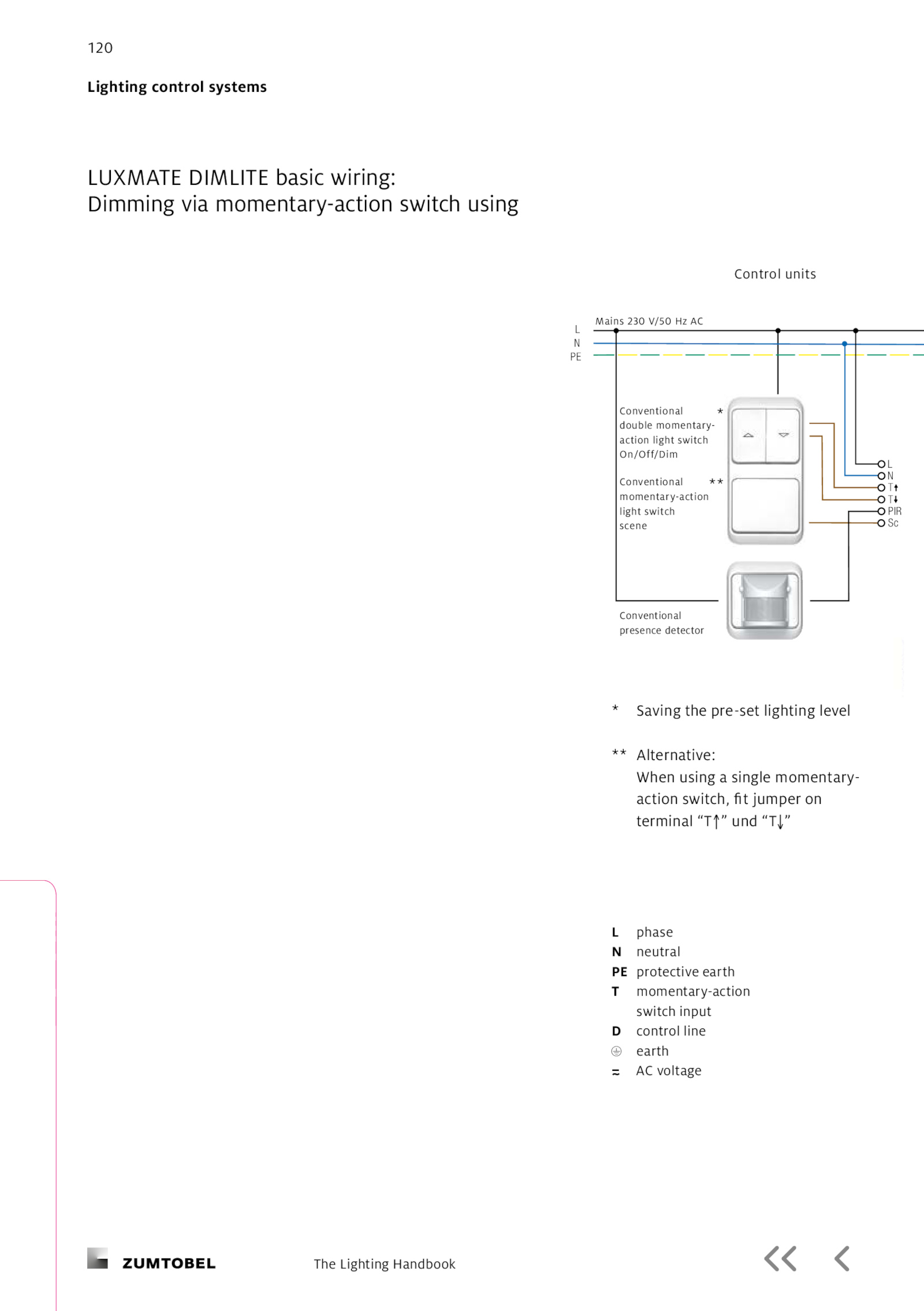

LUXMATE DIMLITE basic wiring:
Dimming via momentary-action switch using
Lighting control systems
L phase
N neutral
PE protective earth
T momentary-action
switch input
D control line
v earth
~
– voltage
