ENIKA: Pojistkový držák PTF 18SMD

| Kategorie: Leták / Datasheet | Tento dokument chci!

Pojistkový držák PTF 18SMD. Pojistkový držák PTF 18SMD. Enika rRozšiřuje nabídku o nový pojistkový držák pro SMD montáž. Představuje nový SMD pojistkový držák pro pojistku 5x20. Maximální proud: 10A Maximální napětí: 250V Pro pojistku: Ø5x20mm Vhodný izolační kryt: BS613NE ...

Vydal: ENIKA spol. s r.o. Autor: Enika

Strana 1 z 2

Zobrazení indexu knihy

Jak získat tento dokument?

Poznámky redaktora

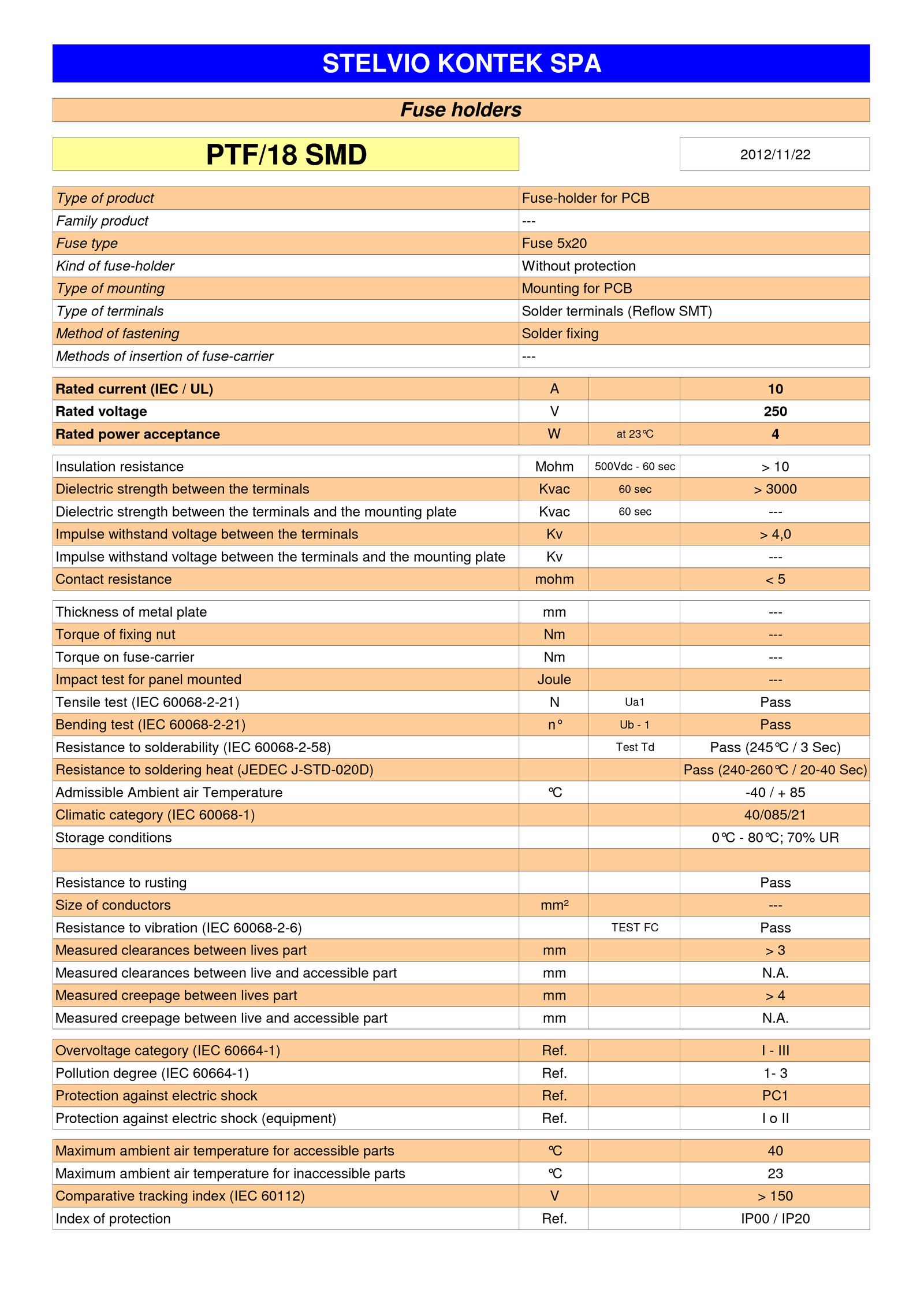

3 Protection against electric shock Ref. II Maximum ambient air temperature for accessible parts 40 Maximum ambient air temperature for inaccessible parts 23 Comparative tracking index (IEC 60112) 150 Index protection Ref. IP00 IP20 STELVIO KONTEK SPA Fuse holders .A.A. PC1 Protection against electric shock (equipment) Ref. Overvoltage category (IEC 60664-1) Ref.PTF/18 SMD 2012/11/22 Type product Fuse-holder for PCB Family product --- Fuse type Fuse 5x20 Kind fuse-holder Without protection Type mounting Mounting for PCB Type terminals Solder terminals (Reflow SMT) Method fastening Solder fixing Methods insertion fuse-carrier --- Rated current (IEC UL) 10 Rated voltage 250 Rated power acceptance 23°C 4 Insulation resistance Mohm 500Vdc sec 10 Dielectric strength between the terminals Kvac sec 3000 Dielectric strength between the terminals and the mounting plate Kvac sec --- Impulse withstand voltage between the terminals 4,0 Impulse withstand voltage between the terminals and the mounting plate --- Contact resistance mohm 5 Thickness metal plate --- Torque fixing nut --- Torque fuse-carrier --- Impact test for panel mounted Joule --- Tensile test (IEC 60068-2-21) Ua1 Pass Bending test (IEC 60068-2-21) Pass Resistance solderability (IEC 60068-2-58) Test Pass (245°C Sec) Resistance soldering heat (JEDEC J-STD-020D) Pass (240-260°C 20-40 Sec) Admissible Ambient air Temperature -40 85 Climatic category (IEC 60068-1) 40/085/21 Storage conditions 0°C 80°C; 70% UR Resistance rusting Pass Size conductors mm² --- Resistance vibration (IEC 60068-2-6) TEST Pass Measured clearances between lives part 3 Measured clearances between live and accessible part N. Measured creepage between lives part 4 Measured creepage between live and accessible part N. III Pollution degree (IEC 60664-1) Ref
