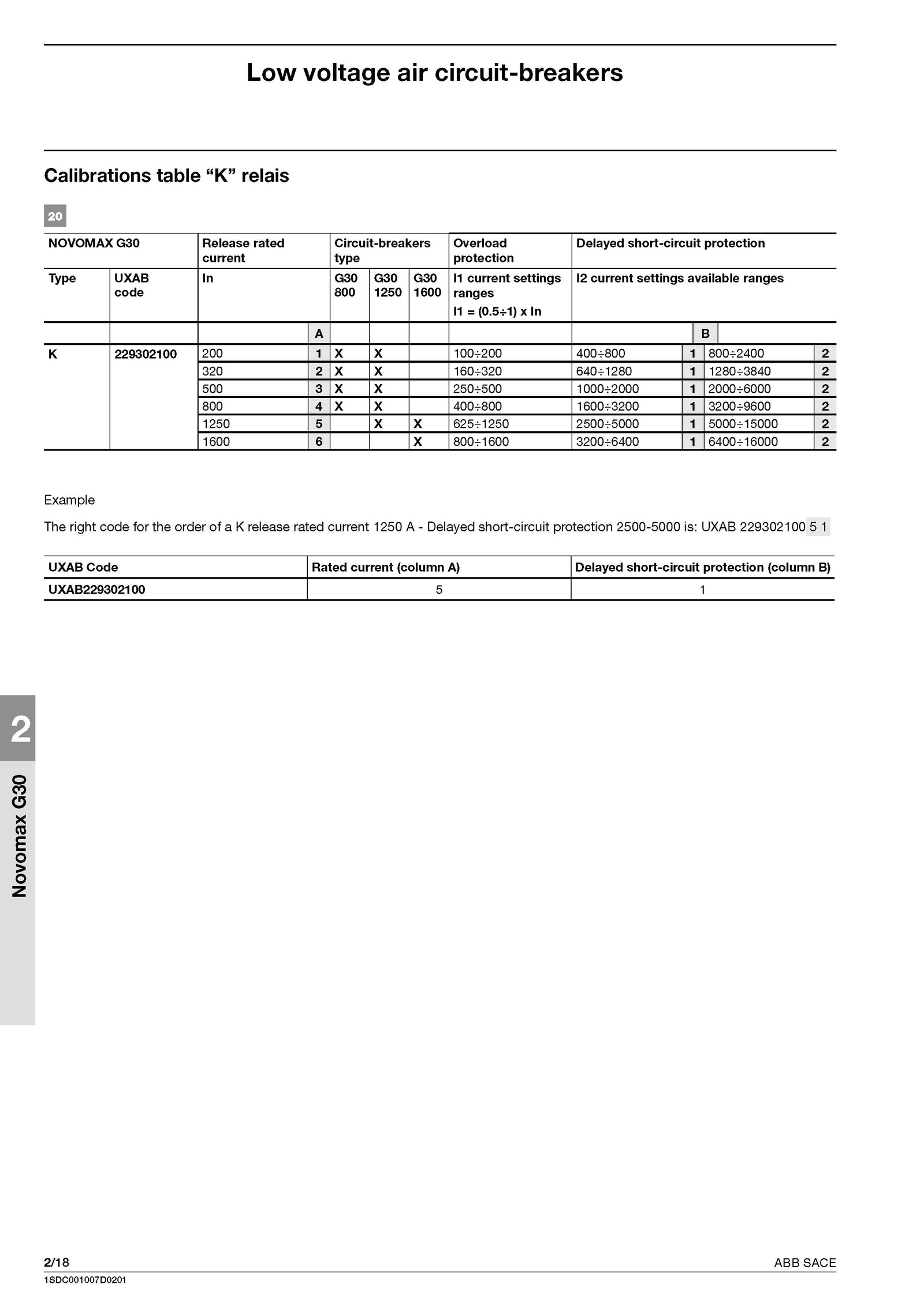

Low voltage air circuit-breakers
Calibrations table “K” relais
20
NOVOMAX G30 Release rated
current
Circuit-breakers
type
Overload
protection
Delayed short-circuit protection
Type UXAB
code
In G30
800
G30
1250
G30
1600
I1 current settings
ranges
I1 (0.5*1) In
I2 current settings available ranges
A B
K 229302100 200 100^200 400^800 800^2400 2
320 160^320 640^1280 1280^3840 2
500 250^500 1000^2000 2000^6000 2
800 400^800 1600^3200 3200^9600 2
1250 625^1250 2500^5000 5000^15000 2
1600 800^1600 3200^6400 6400^16000 2
Example
The right code for the order release rated current 1250 Delayed ort-circuit protection 2500-5000 is: UXAB 229302100 1
UXAB Code Rated current (column Delayed short-circuit protection (column B)
UXAB229302100 1
