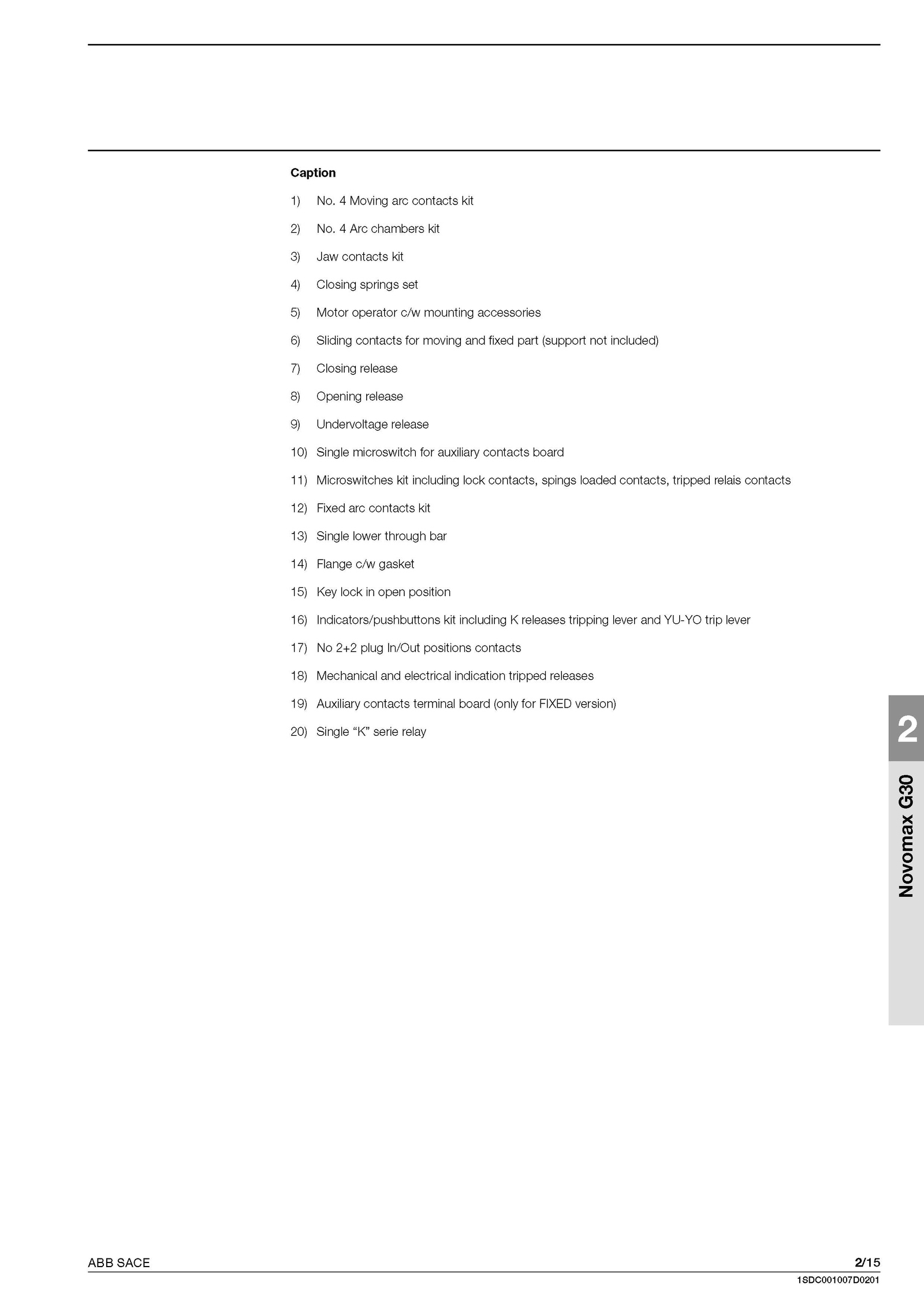

Caption 1) No. Arc chambers kit 3) Jaw contacts kit 4) Closing springs set 5) Motor operator c/w mounting accessories 6) Sliding contacts for moving and fixed part (support not included) 7) Closing release 8) Opening release 9) Undervoltage release 10) Single microswitch for auxiliary contacts board 11) Microswitches kit including lock contacts, spings loaded contacts, tripped relais contacts 12) Fixed arc contacts kit 13) Single lower through bar 14) Flange c/w gasket 15) Key lock open position 16) Indicators/pushbuttons kit including releases tripping lever and YU-YO trip lever 17) 2+2 plug In/Out positions contacts 18) Mechanical and electrical indication tripped releases 19) Auxiliary contacts terminal board (only for FIXED version) 20) Single “K” serie relay ABB SACE __________ /15 1SDC001007D0201 2 NovomaxG30 . Moving arc contacts kit 2) No

---

---
