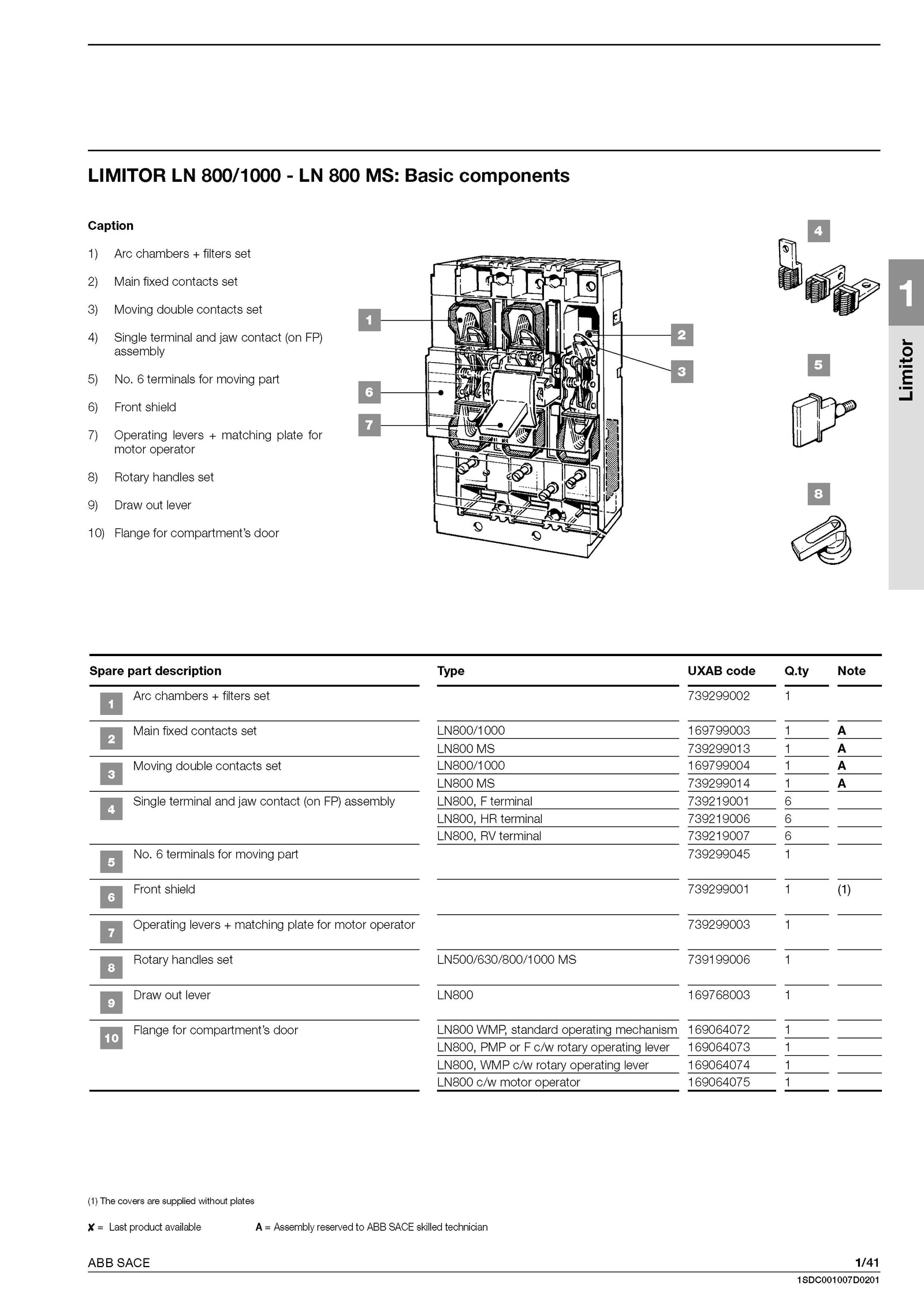

LIMITOR 800/1000 800 MS: Basic components
C tio n
1) Arc chambers filters set
2) Main fixed contacts set
3) Moving double contacts set
4) Single terminal and jaw contact (on FP)
assembly
5) No. terminals for moving part
6) Front shield
7) Operating levers matching plate for
motor operator
8) Rotary handles set
9) Draw out lever
10) Flange for compartment's door
S rip tio Type . terminals for moving part 739299045 1
Front shield 739299001 (1)
£
Operating levers matching plate for motor operator 739299003 1
i Rotary handles set LN500/630/800/1000 739199006 1
È
Draw out lever LN800 169768003 1
£ Flange for compartment's door LN800 WMP, standard operating mechanism 169064072 1
LN800, PMP c/w rotary operating lever 169064073 1
LN800, WMP c/w rotary operating lever 169064074 1
LN800 c/w motor operator 169064075 1
(1) The covers are supplied without plates
X Last product available Assembly reserved ABB SACE skilled technician
ABB SACE 1/41
1SDC001007D0201
1
Limitor
.ty te
c Arc chambers filters set 739299002 1
Main fixed contacts set LN800/1000 169799003 A
LN800 739299013 A
Moving double contacts set LN800/1000 169799004 A
LN800 739299014 A
Single terminal and jaw contact (on FP) assembly LN800, terminal 739219001 6
LN800, terminal 739219006 6
LN800, terminal 739219007 6
£
No
