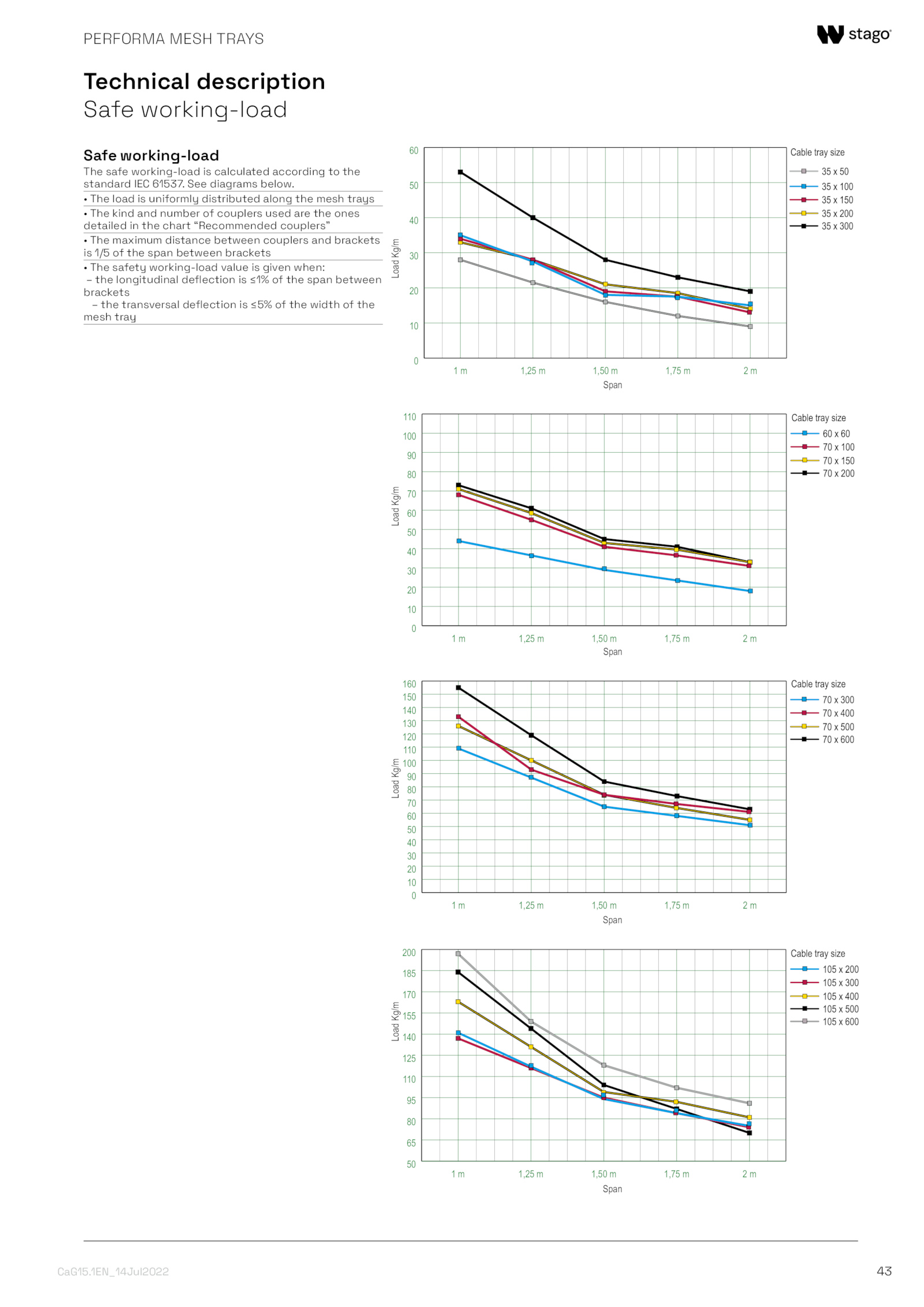

1EN_14Jul2022 43 PERFORMA MESH TRAYS Technical description Safe working-load Safe working-load The safe working-load calculated according the standard IEC 61537. See diagrams below.CaG15. • The load uniformly distributed along the mesh trays • The kind and number couplers used are the ones detailed the chart “Recommended couplers” • The maximum distance between couplers and brackets is 1/5 the span between brackets • The safety working-load value given when: – the longitudinal deflection ≤1% the span between brackets – the transversal deflection ≤5% the width the mesh tray 0 10 20 30 40 50 60 2 m 1,75 m 1,50 m 1,25 m 1 m Load Kg/m Span 0 10 20 30 40 50 60 70 80 90 100 110 2 m 1,75 m 1,50 m 1,25 m 1 m Load Kg/m Span 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 2 m 1,75 m 1,50 m 1,25 m 1 m Load Kg/m Span 50 65 80 95 110 125 140 155 170 185 200 2 m 1,75 m 1,50 m 1,25 m 1 m Load Kg/m Span
