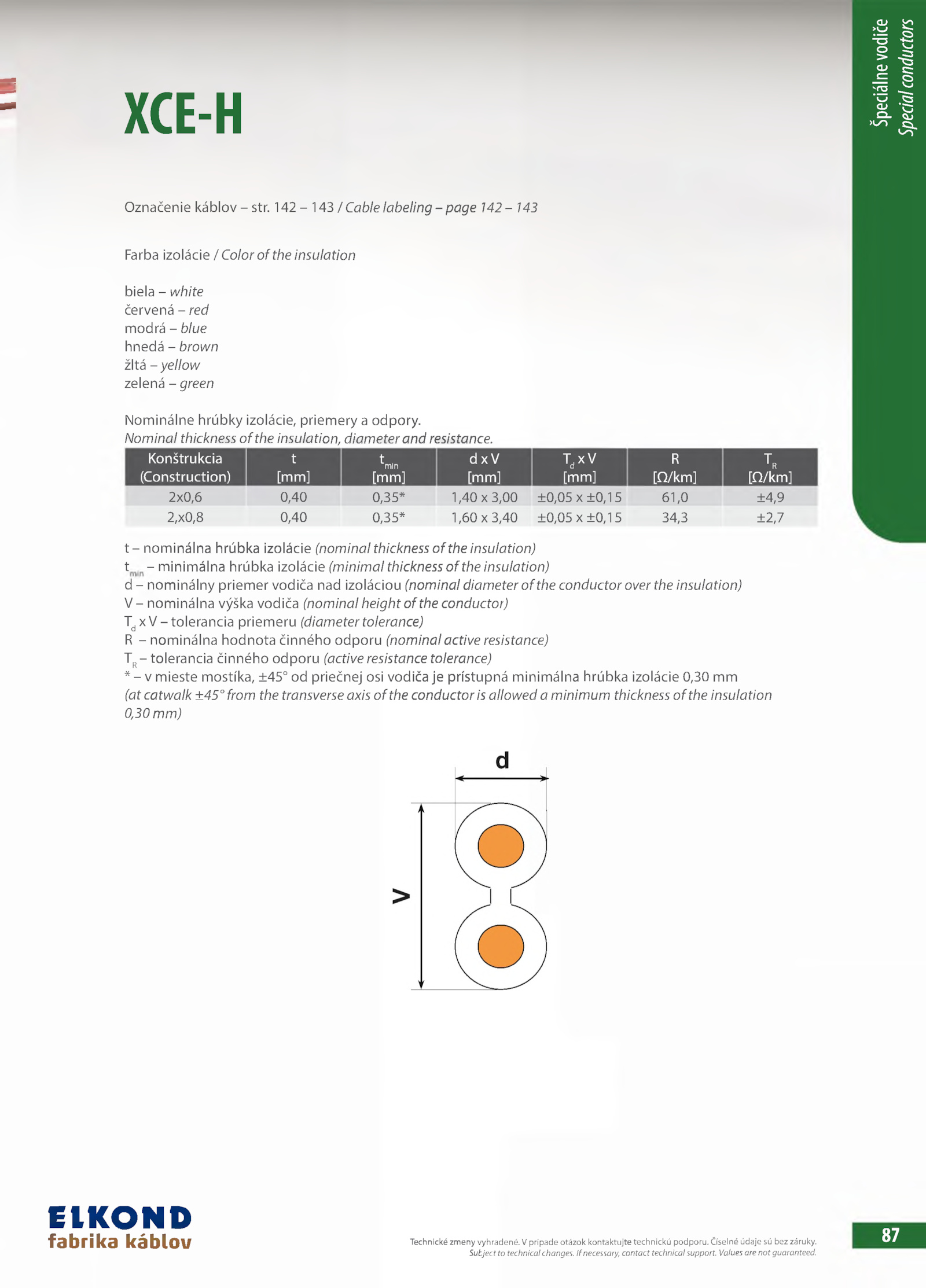

XCE-H
Šp
e
ciá
ln
e
v
o
d
ič
e
Spedal
conductors
Označenie káblov str. 142-143/ Cable labeling page 142 143
Farba izolácie Colorof the insulation
biela white
červená red
modrá blue
hnedá brown
žitá yellow
zelená green
Nominálne hrúbky izolácie, priemery odpory. Číselné údaje bez záruky.
Nominal thickness ofthe insulation, diameterand resistance. prípade otázok kontaktujte technickú podporu.
mm
[mm]
dxV
[mm]
T, V
d
[mm]
R
[Q/km]
tr
[Q/km]
2x0,6 0,40 0,35* 1,40x3,00 ±0,05 ±0,15 61,0 ±4,9
2,x0,8 0,40 0,35* 1,60x3,40 ±0,05 ±0,15 34,3 ±2,7
t nominálna hrúbka izolácie (nominal thickness ofthe insulation)
t minimálna hrúbka izolácie (minimal thickness ofthe insulation)
d nominálny priemer vodiča nad izoláciou (nominal diameterofthe conductor over the insulation)
V- nominálna výška vodiča (nominal heightofthe conductor)
Td tolerancia priemeru (diameter tolerance)
R nominálna hodnota činného odporu (nominalactive resistance)
Tr- tolerancia činného odporu (active resistance tolerance)
* mieste mostíka, ±45° priečnej osi vodiča prístupná minimálna hrúbka izolácie 0,30 mm
(at catwalk ±45° from the transverse axis ofthe conductoris allowed minimum thickness ofthe insulation
0,30 mm)
EIKOND
fabrika káblov 87
Technické zmeny vyhradené. Values are not guaranteed.
Konštrukcia
(Construction)
t
[mm]
t . Ifnecessary, contact technicalsupport.
.
Sutject technicalchanges
