Poznámky redaktora

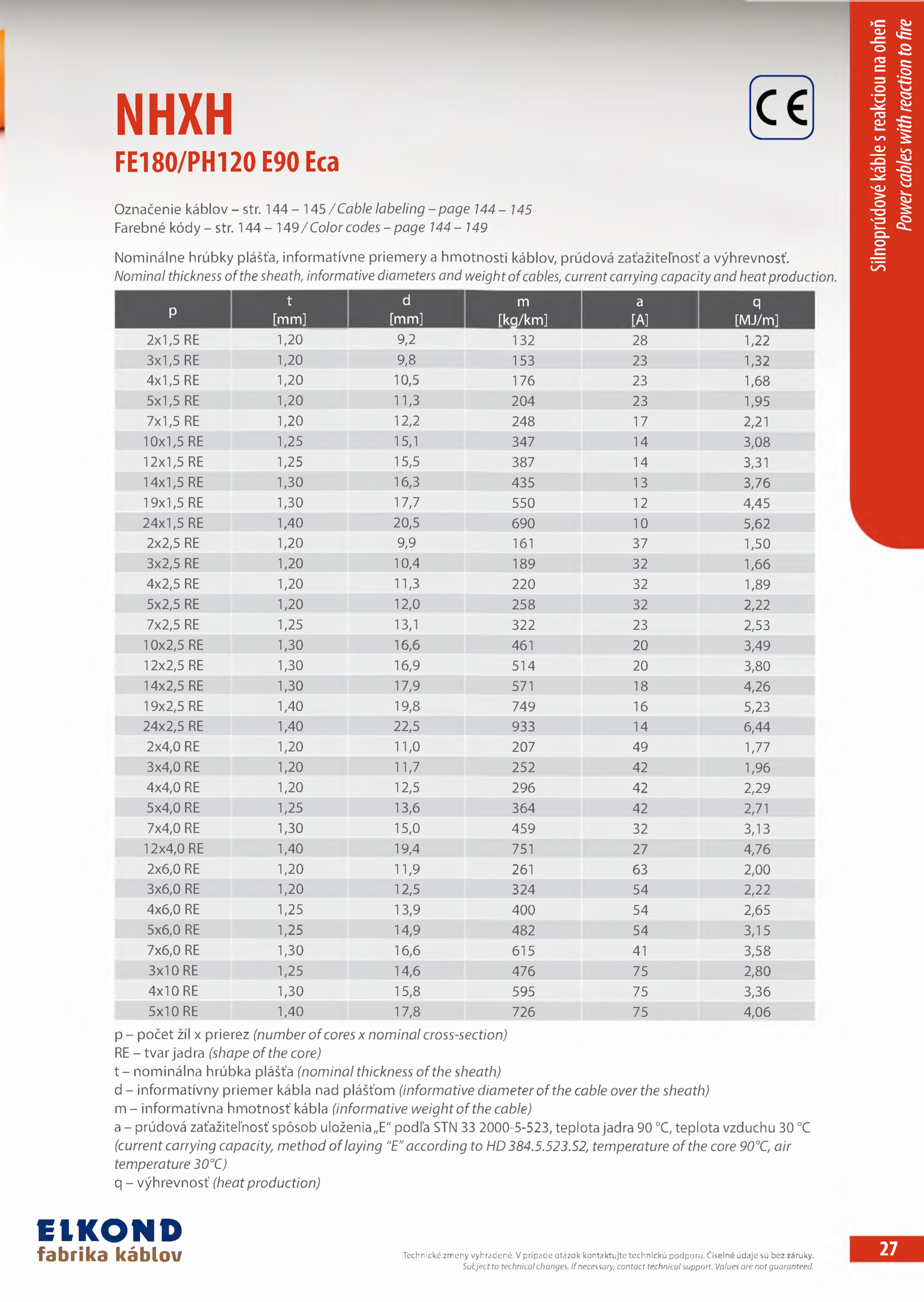

NHXH FE180/PH120 E90 Eca Označenie káblov-str. Subjectto technicalchanges. Nominal thickness ofthe sheath, informative diameters and weightofcables, current carrying capacity and heatproduction. Values are notguaranteed.5. Ifnecessary, contact technical support. 144- 145 /Cable labeling -page 144- 145 Farebné kódy-str. .S2, temperature ofthe core 90°C, air temperature 30°C) q výhrevnosť (heatproduction) EIKOND fabrika káblov 27 Technické zmeny vyhradené.523. prípade otázok kontaktujte technickú podporu. Číselné údaje bez záruky. 144- 149/Color codes page 144- 149 S iln o p rú d o vé k á b le s re a k c io u n a o h e ň Power cables with reaction to hre Nominálne hrúbky plášťa, informatívne priemery hmotnosti káblov, prúdová zaťažiteľnosť výhrevnosť. p t [mm]_____ d [mm] m [kg/km] a [A] q [MJ/m] 2x1,5 1,20 9,2 132 1,22 3x1,5 1,20 9,8 153 1,32 4x1,5 1,20 10,5 176 1,68 5x1,5 1,20 11,3 204 1,95 7x1,5 1,20 12,2 248 2,21 10x1,5 1,25 15,1 347 3,08 12x1,5 1,25 15,5 387 3,31 14x1,5 1,30 16,3 435 3,76 19x1,5 1,30 17,7 550 4,45 24x1,5 1,40 20,5 690 5,62 2x2,5 1,20 9,9 161 1,50 3x2,5 1,20 10,4 189 1,66 4x2,5 1,20 11,3 220 1,89 5x2,5 1,20 12,0 258 2,22 7x2,5 1,25 13,1 322 2,53 10x2,5 1,30 16,6 461 3,49 12x2,5 1,30 16,9 514 3,80 14x2,5 1,30 17,9 571 4,26 19x2,5 1,40 19,8 749 5,23 24x2,5 1,40 22,5 933 6,44 2x4,0 1,20 11,0 207 1,77 3x4,0 1,20 11,7 252 1,96 4x4,0 1,20 12,5 296 2,29 5x4,0 1,25 13,6 364 2,71 7x4,0 1,30 15,0 459 3,13 12x4,0 1,40 19,4 751 4,76 2x6,0 1,20 11,9 261 2,00 3x6,0 1,20 12,5 324 2,22 4x6,0 1,25 13,9 400 2,65 5x6,0 1,25 14,9 482 3,15 7x6,0 1,30 16,6 615 3,58 3x10 1,25 14,6 476 2,80 4x10 1,30 15,8 595 3,36 5x10 1,40 17,8 726 4,06 p počet žíl prierez (number ofcores nominal cross-section) RE tvar jadra (shape ofthe core) t nominálna hrúbka plášťa (nominal thickness ofthe sheath) d informatívny priemer kábla nad plášťom (informative diameterofthe cable over the sheath) m informatívna hmotnosť kábla (informative weightofthe cable) a prúdová zaťažiteľnosť spôsob uloženia„E" podľa STN 2000-5-523, teplota jadra °C, teplota vzduchu °C (current carrying capacity, method oflaying "E" according 384
