Nominaldiameterand weightofcables and thickness ofthe sheath and resistanceoftheconductors. Ifnecessary, contact technical support. 144- 149/Colorcodes-page 144- 149
Nominálne hrúbky plášťa, informatívne priemery, hmotnosti káblov odporyjadier. electrical resistance ofthe conductor °C)
EIKOND
fabrika káblov 129
Technické zmeny vyhradené. Číselné údaje bez záruky.
Sutjectto technical changes. prípade otázok kontaktujte technickú podporu. elektrický odpor jadra, pri teplote (max.
. Values are not guaranteed. 142-143/Cable labeling -page 142-143
Farebné kódy-str.
Konštrukcia
(Construction)
t
[mm]
d
[mm]
m
[kg/km]
R
[Q/km]
2x2,5 mm2 1,2 10,3 172 7,98
2x4,0 mm2 1,2 11,1 212 4,95
2x6,0 mm2 1,2 11,9 265 3,30
2x10 mm2 1,3 15,9 451 1,91
2x16 mm2 1,3 17,7 606 1,21
2x25 mm2 1,4 22,8 946 0,78
t nominálna hrúbka plášťa (nominal thicknessofthe sheath)
d informatívny priemer kábla nad plášťom (informative diameterofthe cable over the sheath)
m informatívna hmotnosť kábla (informative weight ofthe cable)

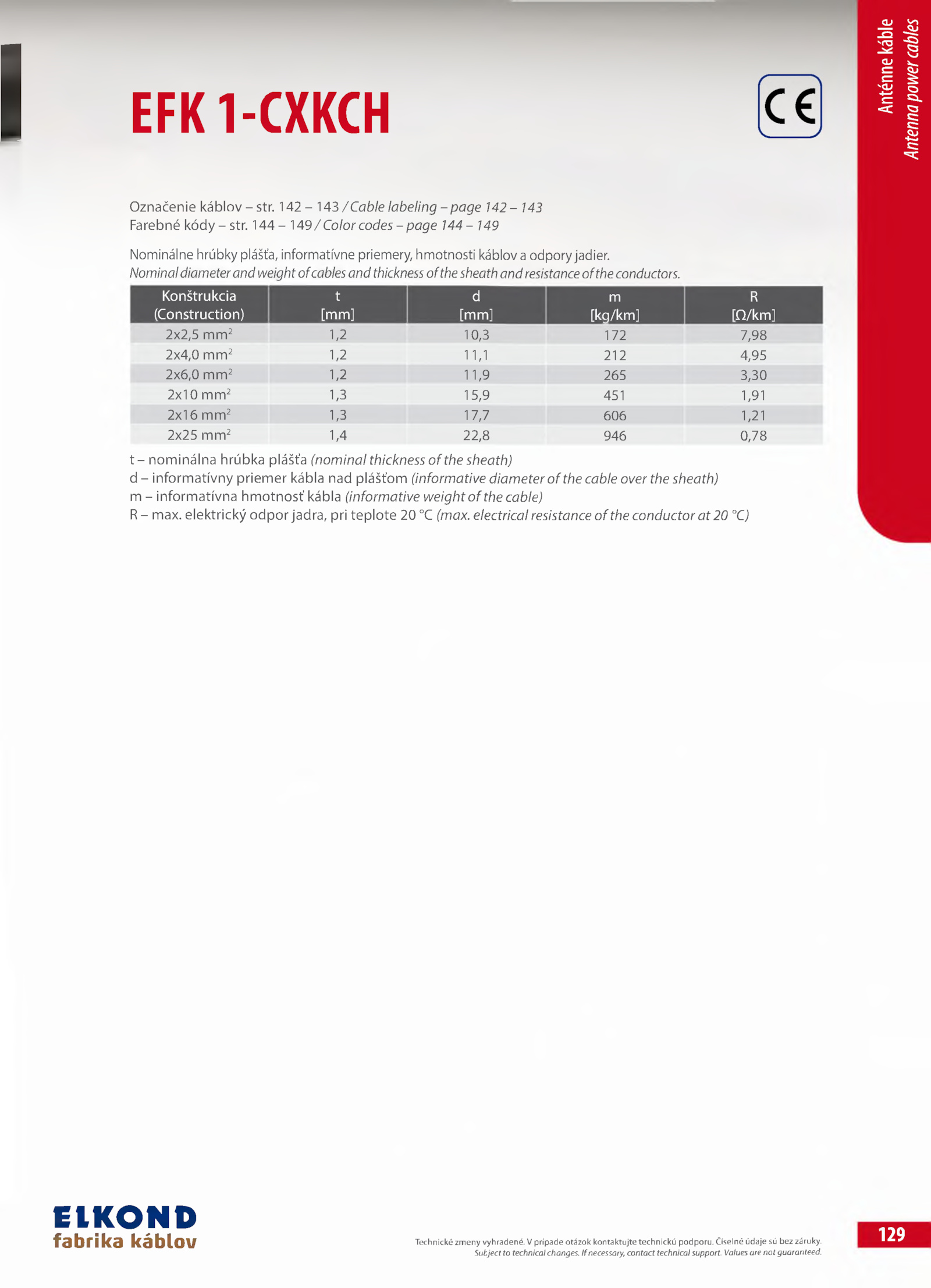

R max.EFK1-CXKCH
A
n
té
n
n
ě
k
á
b
le
Antenna
power
cables
Označenie káblov str
