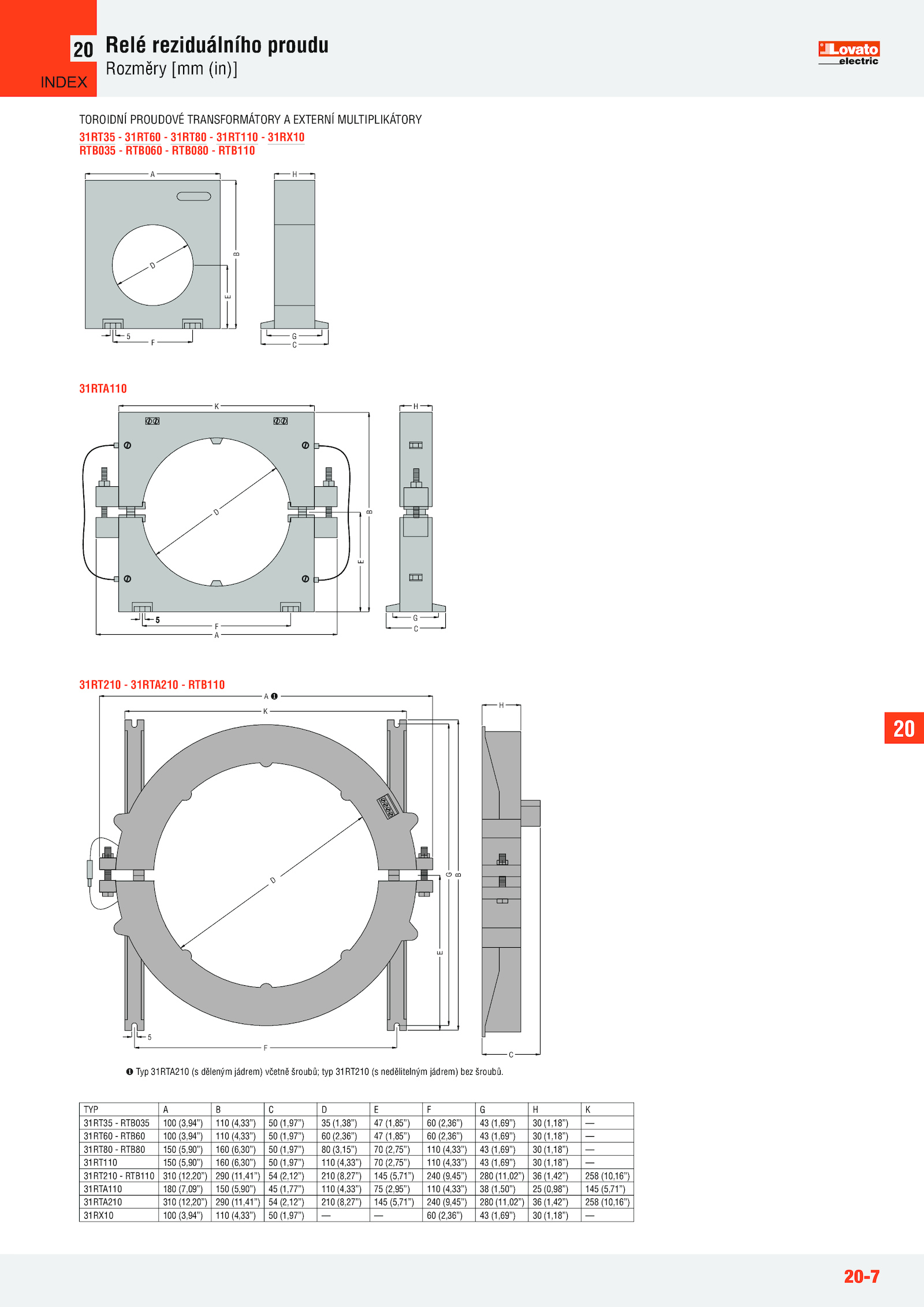

Relé reziduálního proudu
Rozměry [mm (in)]
20
A H
5
B
E
F
G
C
D
RT35 RT60 RT80 RT110 RX10
TIPO K
RT35 100 110 —
RT60 100 110 —
RT80 150 160 110 —
RT110 150 160 100 110 —
RT210 310 290 210 145 240 280 258
RTA110 180 150 110 110 145
RTA210 310 290 210 145 240 280 258
RX10 100 110 —
31RT35 31RT60 31RT80 31RT110 31RX10
RTB035 RTB060 RTB080 RTB110
TOROIDNÍ PROUDOVÉ TRANSFORMÁTORY EXTERNÍ MULTIPLIKÁTORY
B
A
E
F
5
5
D
K
G
C
H
RTA110
TIPO K
RT35 100 110 —
RT60 100 110 —
RT80 150 160 110 —
RT110 150 160 100 110 —
RT210 310 290 210 145 240 280 258
RTA110 180 150 110 110 145
RTA210 310 290 210 145 240 280 258
RX10 100 110 —
31RTA110
A
E
5
A
F
B
C
H
G
K
D
RTA210
TIPO K
RT35 100 110 —
RT60 100 110 —
RT80 150 160 110 —
RT110 150 160 110 110 —
RT210 310 290 210 145 240 280 258
RTA110 180 150 110 110 145
RTA210 310 290 210 145 240 280 258
RX10 100 110 —
A
E
5
A
F
B
C
H
G
K
D
RTA210
TIPO K
RT35 100 110 —
RT60 100 110 —
RT80 150 160 110 —
RT110 150 160 110 110 —
RT210 310 290 210 145 240 280 258
RTA110 180 150 110 110 145
RTA210 310 290 210 145 240 280 258
RX10 100 110 —
31RT210 31RTA210 RTB110
Typ 31RTA210 děleným jádrem) včetně šroubů; typ 31RT210 nedělitelným jádrem) bez šroubů.
TYP K
31RT35 RTB035 100 (3,94”) 110 (4,33”) (1,97”) (1,38”) (1,85”) (2,36”) (1,69”) (1,18”) —
31RT60 RTB60 100 (3,94”) 110 (4,33”) (1,97”) (2,36”) (1,85”) (2,36”) (1,69”) (1,18”) —
31RT80 RTB80 150 (5,90”) 160 (6,30”) (1,97”) (3,15”) (2,75”) 110 (4,33”) (1,69”) (1,18”) —
31RT110 150 (5,90”) 160 (6,30”) (1,97”) 110 (4,33”) (2,75”) 110 (4,33”) (1,69”) (1,18”) —
31RT210 RTB110 310 (12,20”) 290 (11,41”) (2,12”) 210 (8,27”) 145 (5,71”) 240 (9,45”) 280 (11,02”) (1,42”) 258 (10,16”)
31RTA110 180 (7,09”) 150 (5,90”) (1,77”) 110 (4,33”) (2,95”) 110 (4,33”) (1,50”) (0,98”) 145 (5,71”)
31RTA210 310 (12,20”) 290 (11,41”) (2,12”) 210 (8,27”) 145 (5,71”) 240 (9,45”) 280 (11,02”) (1,42”) 258 (10,16”)
31RX10 100 (3,94”) 110 (4,33”) (1,97”) (2,36”) (1,69”) (1,18”) —
