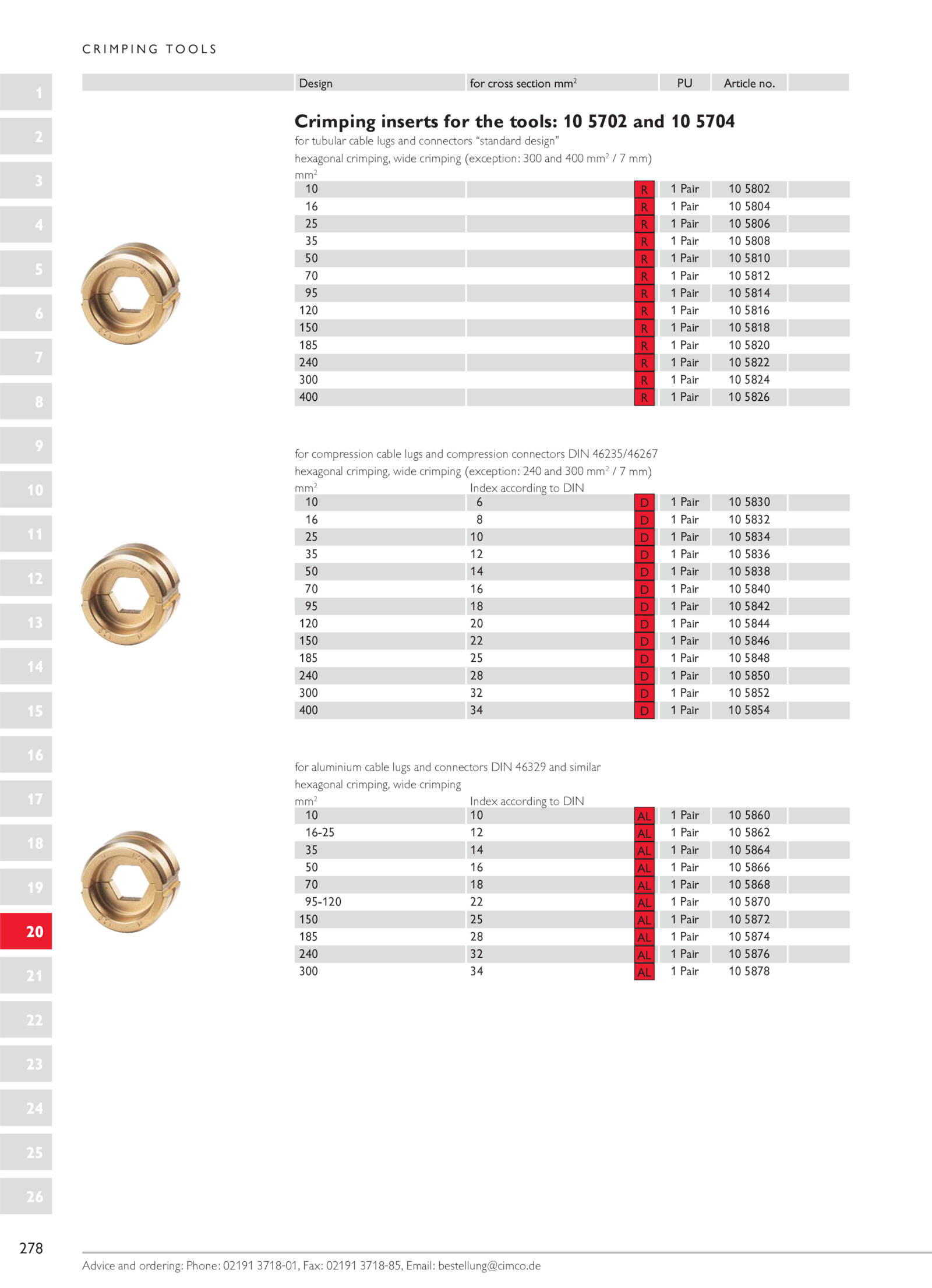

Crimping inserts for the tools: 5702 and 5704
for tubular cable lugs and connectors “standard design”
hexagonal crimping, wide crimping (exception: 300 and 400 mm2
/ mm)
mm2
10 Pair 5802
16 Pair 5804
25 Pair 5806
35 Pair 5808
50 Pair 5810
70 Pair 5812
95 Pair 5814
120 Pair 5816
150 Pair 5818
185 Pair 5820
240 Pair 5822
300 Pair 5824
400 Pair 5826
for compression cable lugs and compression connectors DIN 46235/46267
hexagonal crimping, wide crimping (exception: 240 and 300 mm2
/ mm)
mm2
Index according DIN
10 Pair 5830
16 Pair 5832
25 Pair 5834
35 Pair 5836
50 Pair 5838
70 Pair 5840
95 Pair 5842
120 Pair 5844
150 Pair 5846
185 Pair 5848
240 Pair 5850
300 Pair 5852
400 Pair 5854
for aluminium cable lugs and connectors DIN 46329 and similar
hexagonal crimping, wide crimping
mm2
Index according DIN
10 Pair 5860
16-25 Pair 5862
35 Pair 5864
50 Pair 5866
70 Pair 5868
95-120 Pair 5870
150 Pair 5872
185 Pair 5874
240 Pair 5876
300 Pair 5878
AL
AL
AL
AL
AL
AL
AL
AL
AL
AL
D
D
D
D
D
D
D
D
D
D
D
D
D
R
R
R
R
R
R
R
R
R
R
R
R
R
.de
C S
Design for cross section mm2
PU Article no
