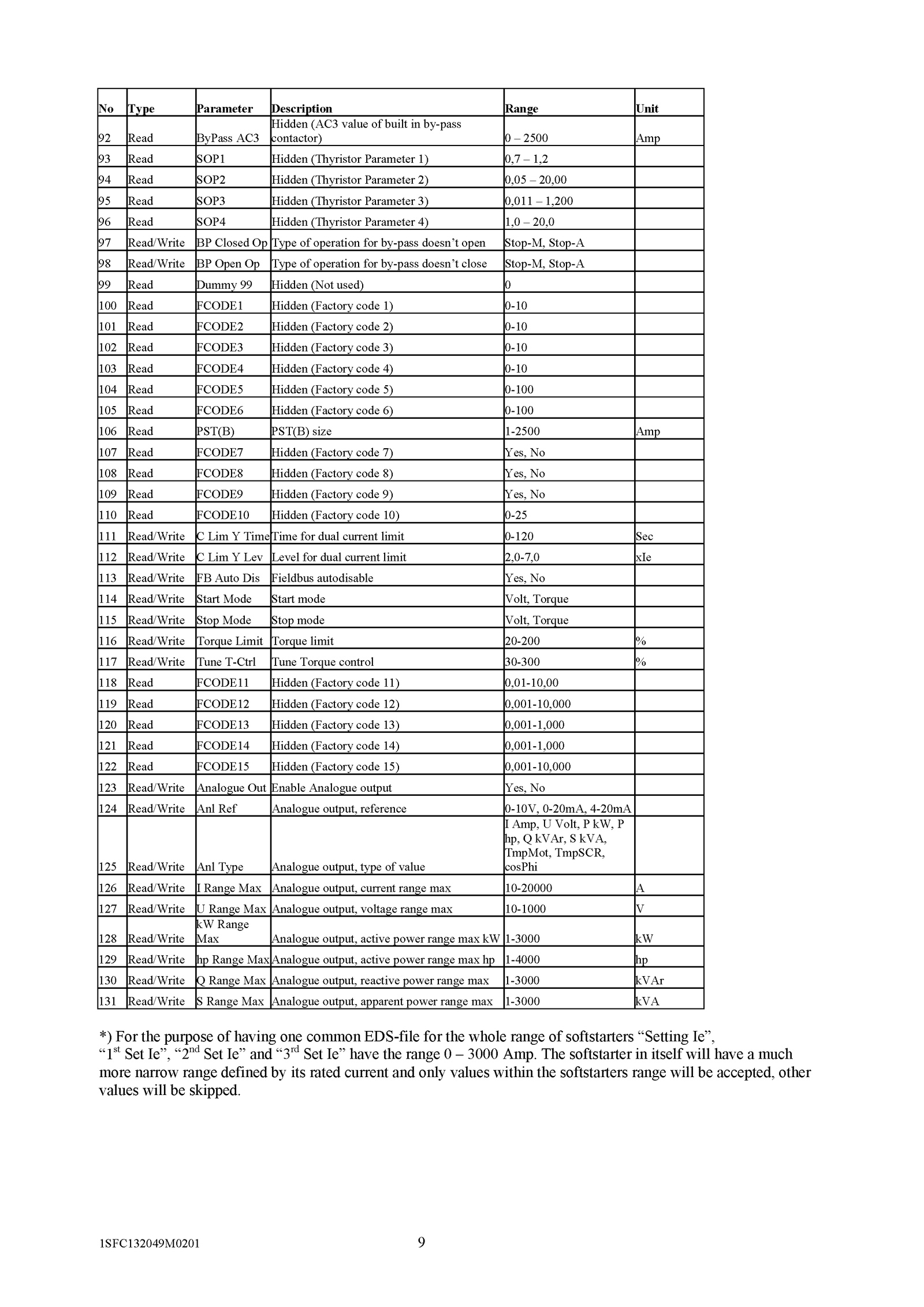

The softstarter itself will have much more narrow range defined its rated current and only values within the softstarters range will accepted, other values will skipped.Type Parameter Description Range Unit 92 Read ByPass AC3 Hidden (AC3 value built by-pass contactor) 2500 Amp 93 Read SOP1 Hidden (Thyristor Parameter 1) <N - <o 94 Read SOP2 Hidden (Thyristor Parameter 0,05 20,00 95 Read SOP3 Hidden (Thyristor Parameter 0,011 1,200 96 Read SOP4 Hidden (Thyristor Parameter 1,0 20,0 97 Read/Write Closed Type operation for by-pass doesn’t open Stop-M, Stop-A 98 Read/Write Open Type operation for by-pass doesn’t close Stop-M, Stop-A 99 Read Dummy Hidden (Not used) 0 100 Read FCODE1 Hidden (Factory code 0-10 101 Read FCODE2 Hidden (Factory code 0-10 102 Read FCODE3 Hidden (Factory code 0-10 103 Read FCODE4 Hidden (Factory code 0-10 104 Read FCODE5 Hidden (Factory code 0-100 105 Read FCODE6 Hidden (Factory code 0-100 106 Read PST(B) PST(B) size 1-2500 Amp 107 Read FCODE7 Hidden (Factory code Yes, No 108 Read FCODE8 Hidden (Factory code Yes, No 109 Read FCODE9 Hidden (Factory code Yes, No 110 Read FCODEIO Hidden (Factory code 10) 0-25 111 Read/Write Lim Time Time for dual current limit 0-120 Sec 112 Read/Write Lim Lev Level for dual current limit 2,0-7,0 xle 113 Read/Write Auto Dis Fieldbus autodisable Yes, No 114 Read/Write Start Mode Start mode Volt, Torque 115 Read/Write Stop Mode Stop mode Volt, Torque 116 Read/Write Torque Limit Torque limit 20-200 % 117 Read/Write Tune T-Ctrl Tune Torque control 30-300 % 118 Read FCODE11 Hidden (Factory code 11) 0,01-10,00 119 Read FCODE12 Hidden (Factory code 12) 0,001-10,000 120 Read FCODE13 Hidden (Factory code 13) 0,001-1,000 121 Read FCODE14 Hidden (Factory code 14) 0,001-1,000 122 Read FCODE15 Hidden (Factory code 15) 0,001-10,000 123 Read/Write Analogue Out Enable Analogue output Yes, No 124 Read/Write Anl Ref Analogue output, reference 0-10V, 0-20mA, 4-20mA 125 Read/Write Anl Type Analogue output, type value 1Amp, Volt, kW, P hp, kVAr, kVA, TmpMot, TmpSCR, cosPhi 126 Read/Write Range Max Analogue output, current range max 10-20000 A 127 Read/Write Range Max Analogue output, voltage range max 10-1000 V 128 Read/Write kW Range Max Analogue output, active power range max 1-3000 kW 129 Read/Write Range Max Analogue output, active power range max 1-4000 hp 130 Read/Write Range Max Analogue output, reactive power range max 1-3000 kVAr 131 Read/Write Range Max Analogue output, apparent power range max 1-3000 kVA *) For the purpose having one common EDS-file for the whole range softstarters “Setting Ie”, “1st Set Ie”, “2nd Set Ie” and “3rd Set Ie” have the range 3000 Amp. 1SFC132049M0201
